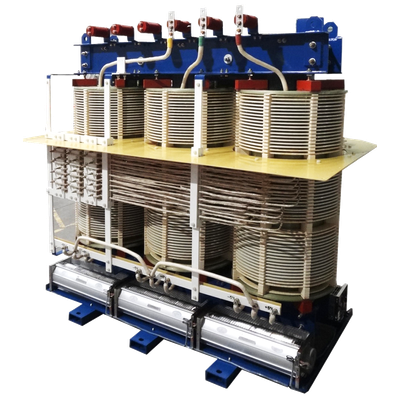

JST - VPI Transformers
VPI transformers are an excellent alternative in applications which call for an environmentally friendly, economical solution. They reduce flammability concerns, require less maintenance, and are less prone to contaminating the surrounding environment than liquid filled transformers avoiding the need for catch basins during construction.
Most popular related searches
- Voltage: Up to 15 kV
- BIL: Up to 110kV
- Ratings: Up to 14.5 MVA
- Enclosure NEMA 1, 12, 3R, 4 & 4X
- Rated power: 100kVA – 14.5 MVA
- High Voltage: 600V – 15kV
- Typical High Voltages (kV): 2.3, 4.16, 8.7, 12.47,13.2, 13.8,15
- Low Voltage: 0.208, 0.24, 0.48, 2.4, 4.16
- High quality Class R (220C) impregnation varnish certified by UL
- Reactor
- Up to 54 pulse transformer
- Water cooled reactor
- Capacity Range ≤1000kVA
- Rated Voltage Range 3.3kV
- Frequency 50Hz/60Hz
- Structure VPI Dry type
- Standards GB, IEC, ANSI/IEEE, UL etc.
- Capacity Range ≤10mH
- Rated Voltage Range ≤ 3.3kV
- Frequency 50Hz/60Hz
- Structure VPI Dry type
- Standards GB, IEC, ANSI/IEEE, UL etc.
- Applications; Cranes, drives, propulsion etc.
