Cincinnati Sub-Zero
Cincinnati Sub Zero - VTS Compact

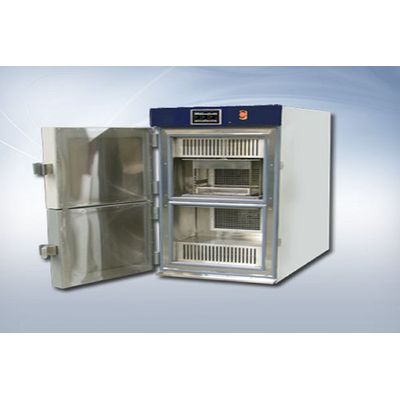

VTS Compact Thermal Shock Chambers consist of two separately controlled hot and cold zones with product being transferred between these zones for rapid product temperature changes. These thermal shock chambers are available with 1 or 3 cu. ft. (30 or 85 liters) of interior workspace volume, ideal for testing to find product flaws in small components/assemblies before they reach your customer. Superior performance and small footprint coupled with many standard features provide exceptional value. The lower chamber also contains both heating/cooling and may be programmed and operated as a separate temperature cycling chamber for greater return on investment. Our VTS-1 thermal shock chambers are also available from stock.
Most popular related searches
thermal shock chamber
emergency stop buttons
emergency stop
compressed air
temperature chamber
community safety
floor safety
- Special design does not require compressed air
- Small footprint offers more floor space
- Built-in safeties for added protection
- Dual Purpose for greater ROI
- Fast part temperature changes rates
- CSZ EZT-570 Touch Screen Controller
- Includes CSZ Connect Software
- Ethernet monitoring & control
- RS-232, RS-485 serial communications
- Door Safety Interlocks
- Emergency Stop Button
- Traveling Cable Port
- Casters & Leveling Legs
| Model | VTS-1 | VTS-3 |
| Interior Dimensions | 1 cu. ft. (30L) | 3 cu. ft. (85L) |
| Product Carrier Test Area Dimensions | 15" wide x 10.5" deep x 11" high (38cm x 26.7cm x 28cm) | 20" wide x 16" deep x 16" high (51cm x 41cm x 41cm) |
| Exterior Dimensions | 34" wide x 62" deep x 70" high (86.4cm x 157.5cm x 177.8cm) | 40" wide x 76 " deep x 79" high (102cm x 193cm x 201cm) |
| Temperature Range | Cold/Hot Chamber: -75°C to +190°C Hot Chamber: 50°C to +210°C |
|
| Maximum Product Load | 20 lbs. (9 kg) | 25 lbs. (11 kg) |
