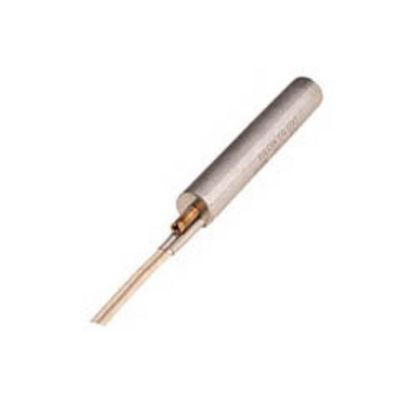

Vulcan - Cal-Stat Thermostats
The Vulcan Cal-Stat has been a reliable temperature control for over 35 years. Rugged, self contained Cal-stats provide design and application versatility not found on many mechanical or solid state temperature controls. These units can be inserted into drilled holes or can be directly immersed into fluids or gases when supplied with an appropriate mounting fitting.
Most popular related searches
- Corrosion-resistant 304 stainless steel outer shell
- 1/2″, and 5/8″ diameter models
- Temperature adjustment range of -100o F (-73o C) to 600o F (316o C) on 1/2″ and 5/8″ models
- Adjusting screw mechanism located on center
- Slow make and break switch mechanism
- Amperage switch ratings up to 10 amps depending on model and operating voltage
- Standard mounting options include basic cartridge, pipe thread, coupling head, and flange
- High temperature lead wire termination – 8″ long
- Many options available including custom lead lengths, temperature presetting, and custom mounting
- Package Machinery
- Commercial Food Equipment
- Lab and Medical Devices
- Laminating Machines
- Marking Equipment
- Diameter : 1/2″ models: .499 + .000 -.004 (12.7 mm + .000 -.102) 5/8″ models: .624 + .000 -.004 (15.9 mm + .000 -.102)
- Tube Shell Material : 304 Stainless Steel
- Temperature Range : 1/2″ and 5/8″ models: -100- F to +600- F (-73- C to 316- C)
- Sensitivity : As low as 1- F (depending on application)
- Action : Slow make and break
- Switch Rating : 1/2″ models: 5 Amp @ 120 VAC, 3 Amps @ 240 VAC, 1 Amp @ 120 VDC 5/8″ models: 10 Amp @ 120 VAC, 5 Amps @ 240 VAC, 2 Amps @ 120 VDC
- Termination : High temperature leads
