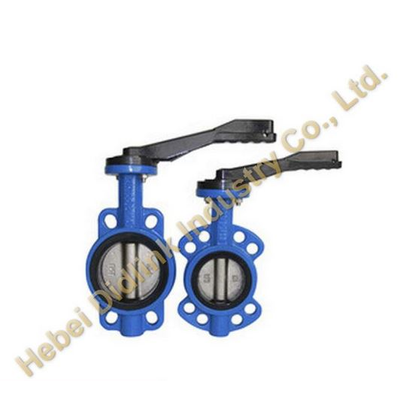

DID Link - Model KITZ -Wafer Type Butterfly Valve
Name: Wafer Type Kitz Butterfly Valve, centric butterfly valve seat EPDM. Design confirms: API 609, BS EN 593, MSS SP-67, BS5155. Top Flange: IS05211 or factory standard. Tightness check: API 598, ISO 5208, EN12266-1, DIN3230, BS5155. Face-to-face conform: API 609, ISO 5752, BS EN 558, BS 5155, MS SP-67, DIN3202. Normal pressure: PN10/PN16/PN25 or 108ar/16Bar/25Bar or class 125/150.
Most popular related searches
wafer butterfly valve
butterfly valve
cast iron butterfly valve
butterfly valve centric
centric butterfly valve
ASTM A276
ASTM A536
pneumatic actuator
industrial water
seated butterfly valve
- Nominal diameter: DN25-DN1200 (1
- Operator: Handle lever, worm gearbox(reducer), electric or pneumatic actuators etc
- Suitable medium: Petroleum, chemical industry, water, oil, gas etc.
- Working temperature: -45 to 200 Celsius
- Body/Disc: Cast lron(CI>: ASTM A126CL B, DIN1691 GG25, EN 1561 EN-GJL-200, GB12226 HT200; Ductile lron{DI): ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10
- Stem: Zinc Plated Carbon Steel; Stainless Steel: ASTM A276 Type 316/304/410/420, ASTM A582 Type 416
- Seat: NBR, EPDM, Neoprene, Viton, PTFE, BUNA, Hypalon.
- Bushing: PTFE, Nylon, Lubricated Bronze
