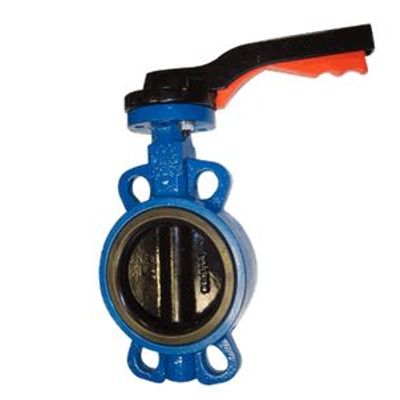

Proinval - Model BVP-79G -Wafer Type Butterfly Valve

SHARE

Proinval BVP-79G butterfly valves wafer type centric stem are designed to satisfy various needs such as supplying, pumping, service of drinking water, treatment, irrigation systems, HVAC.

Most popular related searches
wafer butterfly valve
butterfly valve
drinking water treatment
drinking water treatment system
water treatment
drinking water
water treatment system
butterfly valve centric
shut-off valve
drinking water system
  • GROUP: SHUT-OFF
  • DESCRIPTION: BUTTERFLY VALVE
  • DESIGN PRESSURE (Bar): 16
  • BODY: GJS400 (GGG40)
  • MATERIAL OBTURATOR: GJS400 (GGG40) / STAINLESS STEEL 316
  • SEAT: EPDM
  • CONNEXION/ENDS: WAFER
  • CONNEXION (P/N): DIN NP10-16 / ANSI-150
  • COATING: EPOX1150 MICRONS
  • ND: 40-600
  • ACTIONING: HAND-LEVER 7 GEAR-BOX
