Industrial milling is a continuous process, the 0830 roller grinder design allows for maintenance to be completed in the shortest possible time significantly reducing downtime.

All combinable grains beans peas maize oats barley etc are easily processed with our fluted solid chilled rolls guarantee long service.

There is no need to change screens when feeding different animals or age groups. Wakely roller grinders use at least 50% less energy when compared to hammer mills.

The entire ramp up and ramp down of the milling system can be automated with Wakely control panel. A new feature allows the mills rolls being adjusted for different grains from the control room.

Output 7.0 Tonnes Barley 12% moisture, producing a finely ground sample.
Output 14 Tonnes barley 12% moisture, producing a coarsely ground sample.
No Roll to Roll contact.
Gear box transmission.
800*300mm high quality precision balanced Solid Chilled Rollers. 50-53 HRC.

Double row spherical bearings, housed in heavy duty plummer block on roll shaft.
Electric drive 1/45kw Motor.
Spring roll tension
Spring roll tension.
Ready for 200mm Auger.

Weight 3600kg L= 2625 * Width=1740 * H= 1249 mm.
Full selection of Hoppers, Augers, Grain cleaners (S002) & associated equipment.
Range of control panels & Proximity switches.
One touch operator controls, No tools Spanners involved.
Minimum gap of 0.08mm is maintained between rolls.

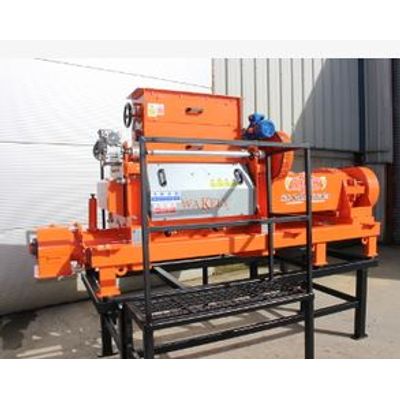

Wakely - Model 0830 -Electric Roller Grinder

Products Details
