ESL - Walk-in Dry Rooms

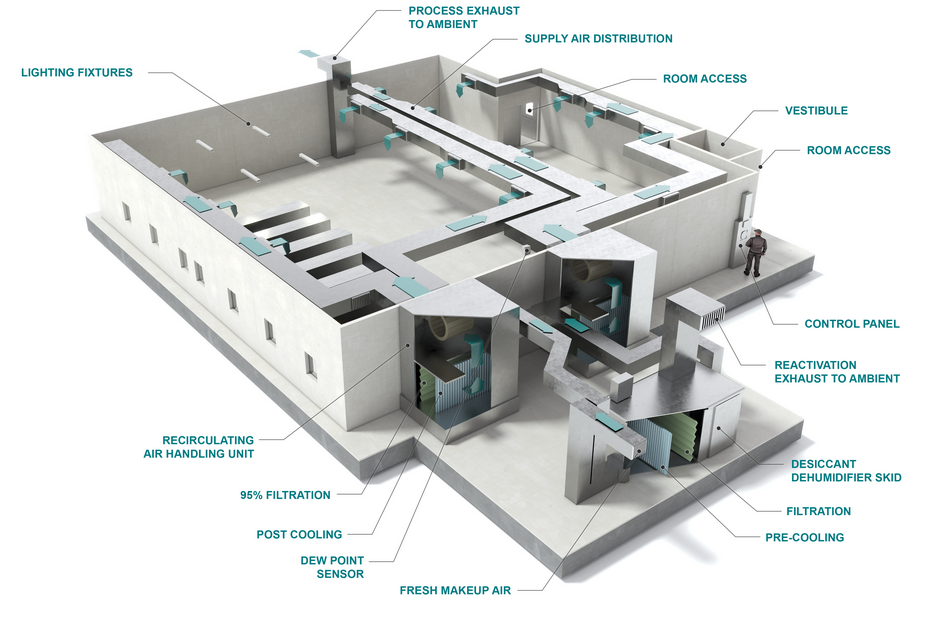

Dry rooms are temperature-, dew point-, and humidity-controlled environmental units that provide stable conditions for the storage and testing of electronic devices and equipment. These highly specialized environmental chambers can maintain dewpoint as low as -80°C, for relative humidity (RH) levels as low as 1 percent. Our dry rooms are designed and constructed by a team of skilled engineers. They are suitable for a wide range of applications including the design, testing, storage, manufacturing, and assembly of batteries, medical devices, and other electronics.
Most popular related searches
cleanroom engineering
dehumidification system
fire retardant
environmental chamber
humidity control
cleanroom drying
field data
site safety
HVAC system
HVAC
Our Dry Rooms combine maximum flexibility with advanced reliability features. We custom design them to fit your unique needs and most challenging specifications.
Sizes
- Custom sizing suited to everything from research and development to storage to gigafactory requirements
- Dewpoint settings as low as -80°C
- Zero dust particles and other contaminants
- Cutting-edge HVAC and dehumidification systems for outstanding air flow
- Air-tight, leakproof system
- Best-in-class materials and engineering for optimal heat transfer performance and exceptional structural integrity
- True volumetric uniformity throughout the chamber
- Fail-safe refrigeration and climate control systems
- Custom designed for specific applications
Architectural Features
- Four-inch urethane insulated “cam-locking” panel construction (R-29) for ease of assembly, disassembly, expansion, performance, and structural rigidity
- Insulated panels placed over common 2-inch and 3-inch panels and foamboard systems
- Panel construction materials and colors will match chamber’s particular applications
- Silicone sealed for minimal vapor transmission
- Personnel and equipment doors feature:
- View windows
- Spring automatic closers or electric slide rails
- Dual wiper floor and edge sweeps to minimize air leakage
- Airlock to help minimize moisture migration into low dewpoint room
- Standard airlock features troffer light(s) and ceiling system consistent with the dry room, as well as motion detector lighting control for efficiency
- Can serve as a gowning area for cleanroom designed dry rooms
- Standard panels are Factory Mutual (FM) approved
- Four-hour fire rating and fire-retardant construction, explosion panels, and seismic panel clips available
Warranty
- Minimum one-year labor and materials with variable extended warranty available
- 24-hour duration
- Monitoring points ranging from 16 to 24 unloaded
- Validation available as an additional service, including installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ)
Turnover Documentation
- Master manual (engineering/design submittal)
- Recommended spare parts
- Major equipment datasheets
- As-built drawings and schematics
- Owner’s instructions
- Controls manual
- Equipment manual
- Warranty statements
- Field testing data
