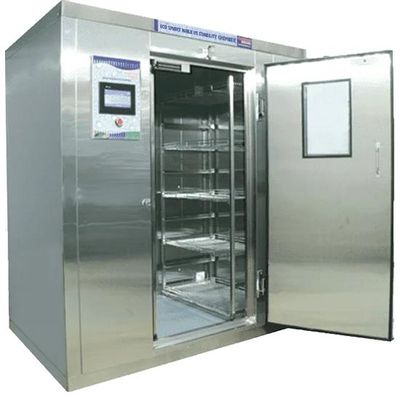

Kesar - Model ECO SMART -Walk in Stability Chamber
A Walk-in chamber is a stability chamber that is large enough for a scientist to physically walk into and perform their tests. Walk-in chamber types are prevalent in more prominent pharmaceutical companies where large batches of drugs are to be tested at the same time. Other than that, a walk-in chamber works in the same way as a normal reach-in stability chamber by managing the parameters of temperature and relative humidity within the walk-in chamber to perform tests.
Most popular related searches
walk-in chamber
stability chamber
cooling system
digital temperature controller
atmospheric moisture
water saving
emergency stop
humidity generator
reach-in chamber
dew point monitoring
CONSTRUCTION
- Smart Power Saving by approx 70% & Water Saving by approx 90%
- Pre-fabricated modular panel type construction with PUF insulation to be assembled on site with floor panels having extra reinforcement to sustain the movement and sample load inside the chamber
- The inner working chamberiswater&vapourtighthigh-gradestainless steel.
- Chambers are provided with effective air circulation system, heating & cooling systems and humidity generator system.
- Multi pane vacuum sealed observation glasswindow to view the samples without disturbing the test condition & human safety.
- Heavy duty solid stainless steel duly electro polished wire mesh/perforated type trays are provided which are easy to clean, time & efforts saving, also adjustable for convenience, along with detachable racks with adjustable angles.
CONTROL SYSTEMS
- 7" HMI with TFT LCD Colourtouch screen with password protection for all parameter actual status monitoring of utilities like Sensor, Heating & Cooling System, Humidity System.
- Imported make 4-20mAsensorsfor better accuracy
- PLC with auto tuning facility for accurate control of temperature and humidity conditions.
- Data Storage facility in HMI and PLC Both PLC`S Stored data transfer in software via Ethernet and HMI`S Stored data can beveiw obtain in PDF form through USB Drive.
- Temperature deviation & RH deviation Alarm
- Power Failure Alarm,
- Continues open door alarm
- Temperature & RH Safety Cutoff
- Low water level Cutoff
- Auto change over Facility for RH Generator & Cooling System .
- Log data, Event data, Audit Trail data, E-Records & E-signatures, Graphical analysis & Data acquisition.
- Dew point Control:
- Measure of atmospheric moisture
- Temperature to which air must be cooled in order to be saturated with water vapour already in the air.
- Temperature at which dew or frost will form
- Coil temperature controlled as per Dew point and Psychometric chart.
- Features:
- Works on the principle of Dew point Control
- No Deviations during short-term door opening & power failure.
- No utility Area | More storage area
- Lower Operating cost | Minimum power & water Consumption
Less deviations | Less breakdowns - Increase in system & process efficiencies through reduced energy consumption.
SPECIAL FEATURES
- Special door lock is provided which can opened from inside even if locked from outside.
- Password Protected Door Access.
- Person trapped Emergency stop protection.
- Low Power Consumption
- Less Water Consumption
- Less Breakdown
- More Storage Area
- Less Deviations
- PLC Control
- Safety
- Ethernet
- Software
- Mobile Alert
- E-Mail Alert
- Documents
- Special door lock which allows opening of the door from the inside even if locked from outside.
- Password protected door access.
- Person trapped cut off facility in the chamber.
- 21 CFR PART-11 COMPLIANCE:Log data, Event data, Audit, Trail data, E-Records & E-signatures, Graphical analysis & Data acquisition.
- Temperature deviation & RH deviation alarm.
- Power Failure Alarm.
- Extreme temperature & RH prevention cut-off system.
- Low water level cut off.
- Stand by Cooling System
- Stand by Humidity System
- Scanner (8 Temp. + 8 RH for Online Monitoring Purpose)
- Mobile Alert System
- Security Alarm System
A Walk-in Chamber is a precision scientific tool that requires the highest level of precision even in the making to ensure it is safe for use. After all, scientific testing for pharmaceuticals is done by scientists physically entering the chamber to perform their experiments.
