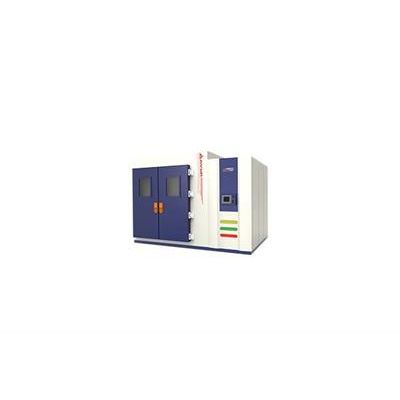

Envsin - Walk-In Temperature and Climate Test Chambers
The Walk-in High and Low Temperature (Humidity) Cycling Test Chamber is designed to test a big size or large number of whole product, machine parts and materials undergoing the conditions of high temperature, low temperature, high-low cycling and constant/cyclic temperature and humidity situation. Mainly test whether products’ adaptive capacity or characteristics changes when the chamber replicates the conditions of Temperature & Humidity climate environment and Temperature & Humidity Changing environment. It is prevailing in many fields such as military, aerospace, shipbuilding, manufacturing and quality management.
Most popular related searches
test chamber
air cooling system
climate test chamber
temperature test chamber
chamber test
humidity test chamber
cooling system
compressed air
exhauster system
water tank
- The modular construction and variability in size and equipment is ideally for costumers’ specific application.
- All welded installation techniques ensure durability and deformation.
- Exhaust system ensure safety when no power.
- Patent of ultrasonic humidification system, which ensures feasibility in high thermal load.
- Intelligent 32 bit measuring and control system with colorful screen. Interface USB and Ethernet.
- APP mobility management.
- Programmable power outlet with 4-CH. ON/OFF output control, to ensure safety.
- Patented air circulation system improves test’s accuracy.
- Protect sample from condensation,over-temperature , smoke, breezeless .
- Network video monitoring is synchronized with test data.
- Automatic water supply device is equipped with ultrapure filtration system and water shortage reminder.
- Environmental servo refrigerant flow control for energy saving and quick heat-up/cool-down rate.
- Without defrosting, during operating in low.
- Uniquely operation mode makes testing zone’s temperature back to R.T after test, which protects sample status.
- Automatic reminder of maintenance time of equipments and software of fault records.
- Optional remote service function and video CD of equipment operation.
Optional Accessories
- Independent sensor for protecting test specimen(compliant with NE60519 -2.1993)
- Lead through Φ100mm
- Drier filter for compressing air
- Nitrogen gas auxiliary device
- Air-Cooled Unit
- Accessory bag
- Software for Internet-based management
- Video monitor system
- APP for mobile management
Standard Accessories
- 3 Power outlets for test specimen
- Left lead through and right lead through with Φ50mm
- 2 Silicon stoppers for lead through
- 2 Stainless steel shelves
- 1 Water Tank with 20L
- 1 Water Filter
