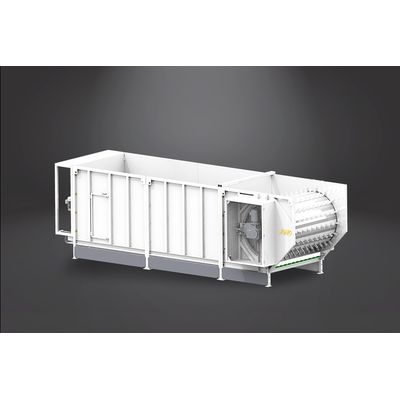

JONO - Walking Floor Step Feeder System
Walking Floor System is used for temporary storage and uniform discharge of all kinds of waste. The hydraulic-driven walking floor at the bottom of the feed bin enables the material in the bin to move uniformly in one direction. A co-rotating metering barrel is arranged at the end of the discharging bin to control the discharging speed. It is made of steel pipe covered by metal sheet and it is equipped with imported Hardox wear-resistant steel plate and Rexroth hydraulic system. Its moving route and frequency are adjustable. The length of the equipment is 40 meters.
Integrating the material receiving, storing and dosing , walking floor system is used in variety of industries to handle bulk material. Fed by a wheel loader in batch typically, it can discharge material in flow which is always necessary for subsequent material process.Meantime, it also works as a buffering bunker to store material temporarily.
By hydraulically driving, the neighbor movable plate at the bottom moves asynchronously to make the material move in one certain direction. A drum that rotates in the same direction as the material moves is set at the discharging port. By this reasonable combination and the gap between the drum and the movable plate, the material is discharged continuously and evenly.
- The even feeding of MSW, Landfill, Organic, C&D waste. It can also be used as a buffer silo to temporarily store materials.
- Model: 2100
- size: 10x2.1x2.5m
- Hydraulic drive: 11KW
- Geared motor: 11KW
- Feeding roller speed: 40 rpm
- Floor unit: hydraulic
- Ambient temperature: 0°c to + 45°c
- Voltage: 3x380 v±5%/50 Hz
- The internet: TNC
- Power Control: Frequency converter
- Control panel: 9 inch Siemens touch screen HMI
- Roller unit: 1.2m round circumscribed polygon
- Discharge gap: 100-1000mm
- Input size: <1000mm
- Volume: 10-40m³
- Feeding capacity: 10-100m³
- Homogenizing roller is made of carbon steel to ensure the structural strength and reduce the weight of the equipment. The shaft and the cylinder are connected by tension sleeves, and the assembly operation is simple and the assembly precision is high.
- Easy maintenance and replacement due to the modular design.
- The bunker wall, feeding plate and the scraping piece on the drum are made of wear-resistant steel plates, which are durable.
- The feeding plates are sealed with each other by a labyrinth pattern, which can effectively prevent materials from entering the gap between the feeding plate to realize self-cleaning.
- Tho uniform roller is driven by a hollow shaft motor which is stable and reliable.
- The scrap plate is designed in a multi-spiral structure, which can effectively reduces the winding possibility of the drum and improves the efficiency of the feeding.
- An maintenance door is designed outside to facilitate cleaning operations and maintenance.
