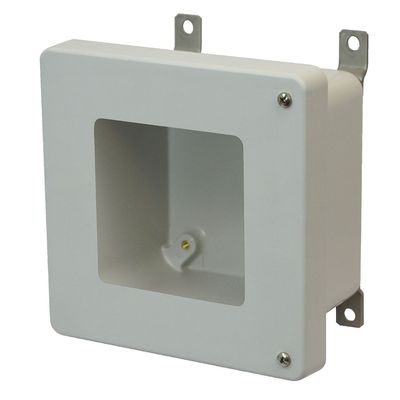

AlliedMoulded - Model AM664HW -Wall Mount Enclosures
Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover.
Most popular related searches
Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
- Cover Type: Hinged 2-Screw Window Cover
- Brand: AM Series JIC Sizes
- Catalog #: AM664HW
- Height: 6.1 in.
- Width: 6.1 in.
- Depth: 4.05 in.
- Usable Depth: 3.65 in.
- Volume: 156 cu. in.
- Carton Quantity: 1
- Carton Weight: 4 lb.
- UPC: 085339906773
- UNSPSC: 39121324
- Country of Origin: United States of America
Standards
- UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175
- CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Complies with:
- EN / IEC 60204-1 and 60529 Type IP66
- RoHS directive
