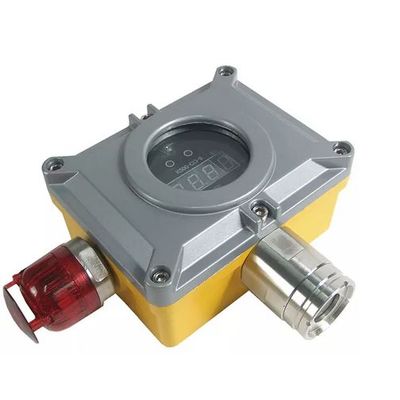

Kelisaike - Model K500 -Wall Mount Gas Analyzer
The K500 Series Wall-mounted Gas Detector, made with imported high sensitivity sensors and an explosion-proof design, has a long service life. This wall mounted gas detector works as part of an integrated system (with 4-20 mA analogue output) or only as an independent system. It has two alarm levels (high level & low level), with different audible and visual alarm signals.
Most popular related searches
fixed gas detection
gas detection system
alarm transmission
gas detection
fixed gas
gas analyzer
waterproofing
sample temperature
diffusive sampling
diffusion sampling
- Imported world famous high sensitivity sensors
- On-spot bright red flashing visual alarm and loud 90 dB audible alarm
- Waterproof and dustproof design for normal and continuous working in harsh environments
- Compatible with DCS (Distributed Control System)
- Flameproof design according to IEC61508, easy to install and maintain
- Adjustable alarm values, with low and high alarm levels
- 220 V AC or 24 V DC power supply, 4-20 mA analogue output, three core shield cable, DCS system
- Certifications: CMC, Ex, MA (Safety Certificate Of Approval For Coal Mining Products In China )
- Weight 3.5 kg
- Sampling Diffusion
- Working Temperature -20° C ~ +55° C
- Relative Humidity 15% ~ 90% RH (non-condensing)
- Power 220 V AC/24 V DC
- Service Life 2 years
- Display 4-digit LED display
- Pressure 86 ~ 106 kPa
- Alarm Mode Acousto optic alarm
- Transmission Distance Max. 1000 m
- Wiring 3-core shield cable, 3 x1.0 mm
- Enclosure Aluminum alloy and stainless steel
- Explosion-proof Grade Ex d IIC T6
