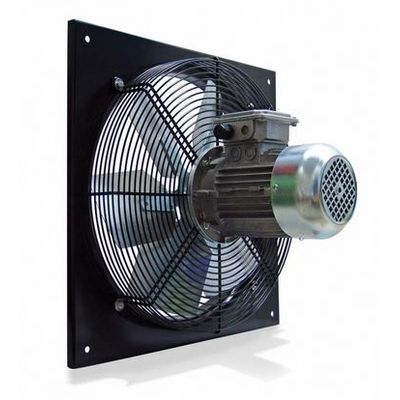

Fantini - Model AFM -Wall Mounted Axial Fans

FromFantini Cosmi S.p.A.

SHARE

The AFM series axial fans are designed to be installed in domestic and commercial environments, where is required direct outdoor air expulsion. Not suitable for acid and dusty air. These fans are designed for installation on walls, panels or ventilation ducts with limited air losses. For direct outdoor air exhaust or through a short duct

Most popular related searches

air conditioning industry

ventilation duct

asynchronous motor

air conditioning

air regulations

Steel body tinted with epoxy resin coating.
Impeller made of metal with 6 blades and galvanized steel hub.
Impeller is statically and dynamically balanced
Asynchronous motor with aluminium body, IP55, Class F, S1.
Motor complying to 2009/125/CE ErP directive.
Three-phase 400V and Mono-phase 230V motors.
Safety grille painted with epoxy powder.
For continuous operation in environments with max temperature 40°C.

Phase slicing speed regulator for monophase motors.
Safety protection grille for the fan delivery side, for external wall installation.
Gravity shutter for external wall application, made from high density polyethylene plastic, UV rays stabilized and resistant against atmospheric agents corrosion action.
The CGE 500/AFM and CGE 600/AFM gravity shutters are made of epoxy resin coated steel sheets with a safety grille incorporated.

Homologation

Reg. compliance (EU) 327/2011

Installation and use

Installation on walls, panels or ventilation ducts with limited air losses.
