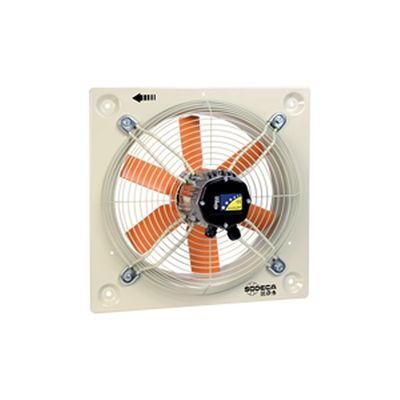

Sodeca - Model HEP -Wall Mounted Axial Fans with IP65 Motor

Fan:

• Airflow direction from motor to impeller.
• Fibreglass reinforced polyamide-6 impeller.
• Steel sheet support frame.
• Protection grid against contacts according to UNE-EN ISO 12499.

Motor:

• Class F motors with ball bearings and IP65 protection.
• Single-phase 220-240V 50Hz and three-phase 240V/380-415V 50Hz.
• Working temperature: -25ºC +60 ºC for 4-6-8 pole motors and -25ºC +45ºC for 2-pole motors.

Finishing:

• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.

On request:

• Motor, impeller and grille assembly (version F).
• Motor, impeller assembly (version G).
• Airflow direction from impeller to motor.
• Special windings for different voltages.
