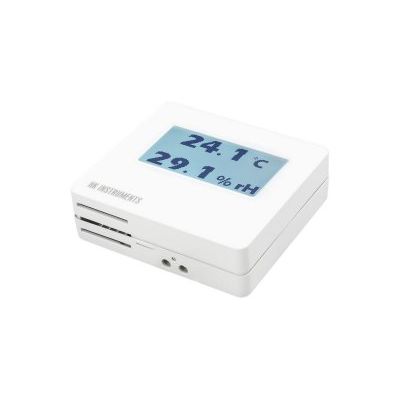

HK Instruments - Model RHT -Wall Mounted Humidity Transmitters
FromProdual UK Ltd.
Humidity transmitters for building automation systems. RHT relative humidity transmitters are engineered for building automation systems in the HVAC/R industry. The RHT measures relative humidity (rH), and temperature (T). RHT devices are available with large touchscreen display making configuration of the device quick and easy.
Most popular related searches
humidity transmitter
temperature monitoring
temperature sensor
humidity measurement
HVAC industry
HVAC
industrial HVAC
RHT devices include:
- Separate field configurable output for each measurement parameter (rH and T)
- Proportional output options including: voltage (0–10 V, 2–10 V) and current (4–20 mA)
- Optional relay output and Modbus communication
- Accurary: Temperature:
- Measuring units: °C, % rH
- Measurement elements: Pt1000 temperature sensor, thermoset polymer capacitive sensing element for humidity
- Supply voltage: 24 VDC/VAC ±10 %
- Current consumption: max 90 mA (at 24 V) + 10 mA for each voltage output or 20 mA for each current output
- Output signal 1: 0/2…10 V (linear to rH), L min 1 kΩ or 4…20 mA (linear to rH), L max 500 Ω
- Output signal 2: 0/2…10 V (linear to Temp), L min 1k Ω or 4…20 mA (linear to Temp), L max 500 Ω
- Optional relay output: Potential free SPDT 250 VAC, 6 A / 30 VDC, 6 A with adjustable switching point and hysteresis
- Operating temperature: 0...+50 °C
- Protection standard: IP20
