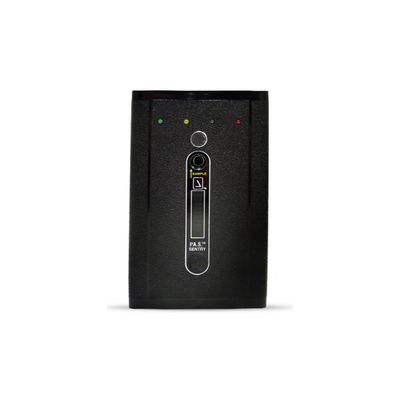

PAS Sentry - Model 105-502 -Wall-Mounted, Passive Breath Alcohol Testing Device
A wall mounted, hands-free device with audible and visual signals that effectively alert to the presence of alcohol. Ideal for use at entry points to a building, the Sentry works to keep staff safe and monitor compliance. The fully automated design can stand alone or be sequenced with existing access control systems to deny entry with a positive alcohol reading. Simply blow or talk to activate the sensor and initiate the testing process.
Most popular related searches
breath alcohol testing system
breath alcohol
alcohol test device
alcohol testing system
breath alcohol testing
alcohol testing
alcohol breath testing
temperature calibrator
electrochemistry
electrochemical sensor
- Enforce Zero Alcohol Tolerance policy in:
- ASAPs Alcohol Treatment Centers
- Correctional Facilities
- Military Industry
Technical Specifications :
- Advanced professional grade platinum electrochemical fuel cell sensor
- Specificity ?? Unaffected by acetone, confections, methane & most other substances likely to be found in the human breath which would distort test results
- Detects low breath alcohol levels
Sampling :
- Automatic Sampling System- breath sample automatically taken during a 4-8 second blow (reaching deep lung air) at approximately 6-8 inches from intake port
- Sanitary ?? No mouthpieces or straws required
- Alarm ?? Audible alarm sounds at 0.02% BrAC
Physical Characteristics :
- Display?? Color coded 9 element LED bar graph
- Visual Prompts ?? 5 LEDs indicate current testing status to ensure a precise and tamper proof measurement
- Hardy design engineered to withstand high usage
- Dimensions ?? 3.00”W x 5.25”H x 1.75”D
- Weight ??8.0 ounces
Operating Temperature :
- 50? to 105?
- Warm up time of 1-2 minutes after initial power on at temperatures of 59?
Calibration :
- Recommended yearly
- Wet Bath
Power Supply :
- 110 volt AC electrical outlet
Warranty :
- Parts and Labor: 1 year warranty
- Fuel Cell: 2 year warranty
