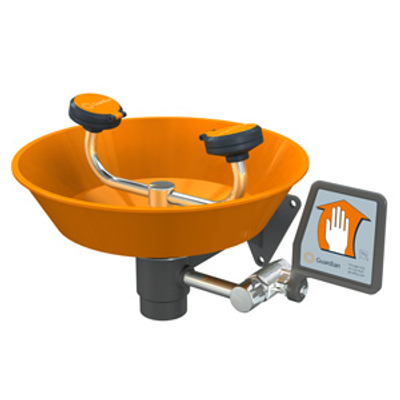

Guardian - Model G1750P -Wall Mounted Plastic Bow Eye/Face Washer

FromGuardian Equipment

SHARE

Application: Eye/face wash for wall mounting. Two large FS-Plus™ spray-type outlet heads deliver a flood of water for rinsing eyes and face. spray head assembly: Two FS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow. Valve: 1/2` IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals.

Most popular related searches

thermostatic mixing valve

water flow valve

brass ball valve

bowl: 11-3/4" diameter orange ABS plastic.
mounting: Heavy duty cast aluminum wall bracket with corrosion resistant powder coated finish.
supply: 1/2" NPT female inlet.
waste: 1-1/4" NPT female outlet.
sign: ANSI-compliant identification sign.
quality assurance: Unit is completely assembled and water tested prior to shipment.

Available Options

DC Stainless steel dust cover for each spray head.
GRN Green ABS plastic bowl.
YEL Yellow ABS plastic bowl.
HS Auxiliary hand-held drench hose for rinsing eyes, face or body.
SC Self-closing ball valve. Note: Eye/face washes with self-closing valves do not comply with ANSI Z358.1 - 2014.
T Chrome plated brass tailpiece and trap with 1 1/2" IPS waste connection.
TP 1 1/2" OD chrome plated brass tailpiece.
TMV G3600LF thermostatic mixing valve precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1 - 2014. Refer to Tempering Units section for complete technical and product selection information
