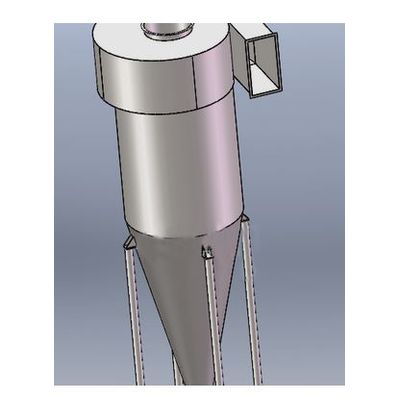

Walle - Cyclone Dust Collector
Cyclone dust collector is a kind of dust removal device. The dust removal mechanism is to make the dusty air flow rotate, separate the dust particles from the air flow and trap them on the wall with the help of centrifugal force, and then make the dust particles fall into the ash hopper with the help of gravity.
The cyclone dust collector has the advantages of simple structure, easy manufacture, installation, maintenance and management, and low equipment investment and operation cost
What we offer
- High efficiency cyclone dust collector, with small cylinder diameter, is used to separate fine dust, and the dust removal efficiency is more than 95%;
- Large flow cyclone, with large cylinder diameter, is used to deal with large gas flow, and its dust removal efficiency is more than 50-80%;
- The universal cyclone dust collector has moderate air volume. Due to different structural forms, the dust removal efficiency fluctuates between 70-85%,
- Explosion proof cyclone dust collector, with explosion-proof valve, has explosion-proof function.
According to the structural form, it can be divided into long cone, cylinder, diffusion type and bypass type.
According to the combination and installation, it is divided into inner cyclone, outer cyclone, vertical and horizontal, single cylinder and multi tube cyclone.
According to the introduction of air flow, the flow path of air flow after cyclone dust removal and the form with secondary air can be generally divided into the following two types:
- Tangential flow reverse cyclone
- Axial flow cyclone
