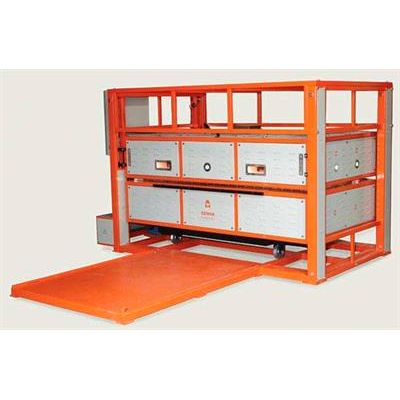

Vesta - Model GWB / MTR Series -Washbasin Kilns with Truck
Max. Operating Temperature : 900°C. Temperature Control : Multizone Dual Control. Switching Device : Contactor with Surge Suppression / SSR - Solid State Relay (optional). Thermocouple : Type K (NiCr-Ni) inserted in ceramic tube. Thermal Insulation : High density ceramic fiber (multilayer).
Most popular related searches
digital temperature controller
ceramic fiber
type k thermocouple
damper
ceramic density
thermocouple
natural radiation
- Heating Surface : Top and bottom
- Heating Elements : Resistance wire wound inside quartz tubes to ensure uniform radiation
- Cooling : Natural cooling through ventilation holes/ programmable motor driven dampers (optional)
- TURBO COOLING - Forced convection by high pressure fan (optional)
- Number of Trucks : 1 (standard) / 2 or more (optional)
- Truck Movement : Manual (standard) / Programmable (optional)
- Lid Opening : By mechanical elevating mechanism
- Frame Construction : Welded steel profiles
- Casing : Folded sheet metal
- Coating : Thermoset powder coat
- Standard Color : Beige (RAL 7032 W) + Orange (RAL 2004 W) - Other colors on request.
- Connection : Three Phase + Neutral + Earth
