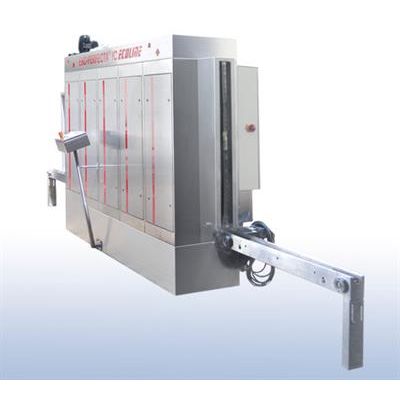

Esc-Perfecta - Model ECOline -Washing and Reclaiming Machines
Innovation: pre-selectable nozzle bar operating height for various screen sizes, offering savings of time, chemicals and energy
Innovation: screen washing module with integrated inclined filter system prolongs the solvent’s lifetime and reduces new solvent expenses . Innovation: screen reclaiming module with integrated development saves extra investment in a separate screen developing system.
Most popular related searches
vacuum distillation
washing system
filter integrity
screening system
solvent screening
decantation
screen separator
decanter
chemical screening
solvent recycling
InLine modules for free combination according to customers’ preference:
- feeding station (basic version)
- automatic screen feed station
- ESC-PERFECTA® IC ROBOT (upgrade)
- screen washing module with integrated inclined filter system (basic version)
- 100 l solvent tank (basic version)
- dripping module (basic version)
- rinsing module (upgrade)
- drying module (upgrade)
- high-pressure module I
- screen reclaiming module with integrated development (basic version)
- high-pressure module II
- screen developing module
- drying module (upgrade)
- unloading station (basic version)
- automatic screen removal station
- ESC-PERFECTA® IC ROBOT (upgrade)
- screen washing module ready-to-connect to the ESC-PERFECTA® IC vacuum distillation unit respectively to the separate ESC IC solvent filter system with integrated decanter for mechanical sedimentation
- model 1200 1600 2200
- max. screen height 1200 mm 1600 mm 2200 mm
- overall size (WxDxH) 3000 x 800 x 2000 mm 3000 x 800 x 2400 mm 3000 x 800 x 3000 mm
- weight 1100 kg 1250 kg 1400 kg
- mains supply 3 x 400 V/50 cps/5.5 kW 3 x 400 V/50 cps/5.5 kW 3 x 400 V/50 cps/5.5 kW
