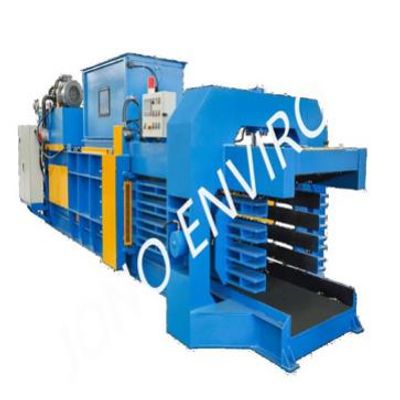

JONO - Model S-120KV -Waste Paper Baler Paperboard Garbage Packing Machine
The JONO baler is a fully automatic system for compacting different types of materials and their processing into bales. After the material has reached the desired fill level on the filling chamber, the cover of the baler is closed automatically.
When the baler cover is closed, the main ram presses the materials together. At the same time the baler is refilled from the feed belt. After the ram has reached the foremost position, it moves back again.
The material that has been pressed enough is loaded into the intermediate hopper above; the cover of the baler will then open again and refill the cover of the baler with the material.
The cover of the baler closes again after the material has fallen into the compression chamber of the baler.
This procedure is detected by photocells. The whole process is repeated until the desired bale length (which is adjustable) has been reached.
The cover stops in front position after the cycle mentioned above is finished. The wire device moves through the cover around the bale, from the bottom up. The device accepts a wire from below and from above the baler. After the wire device is again in the top position, the wires are cut and connected. After that, the press ram moves backward again and the whole process is repeated.
- After-sales Service: Instruction for Commissioning and Maintenance
- Warranty: 1 Year
- Condition: New
- Certification: ISO, CE, SGS
- Automation: Automatic
- Screw: intelligent sorting
- Customization: Available
- Model NO.: S-120KV
- Treatment: mechanical sorting
- Lead Time: 1-3 Month
- Customize: Welcome
- Color: White/Orange/Customize
- MOQ: 1 set
- Transport Package: Container
- Specification: S-120KV
- Trademark: Jono
- Origin: Jiangsu, China
- HS Code: 8464909000
- Production Capacity: 10/Month
- Model: S-120KV
- Length (mm): 9948
- Width(mm): 2390
- Height(mm): 3035
- Pressing force Pre-compressing flap(t): 2x20
- Drive power (kW): 90
- Max. Press power (bar): 290
- Main hydraulic cylinder-working length(mm): 2600
- Spec. Press force (kg/cm²): 15,1
- Pressing force (T or kN): 120/1200
- Volume/cycles (m3): 2,9
- Cycle without Material without twisting (sec): 20
- Cycle twisting (Sec ): 14
- Performance 30 kg/m3 (t/h): 13-16
- Performance 50 kg/m3 (t/h): 20-25
- Performance 100 kg/m3 (t/h): 28-32
