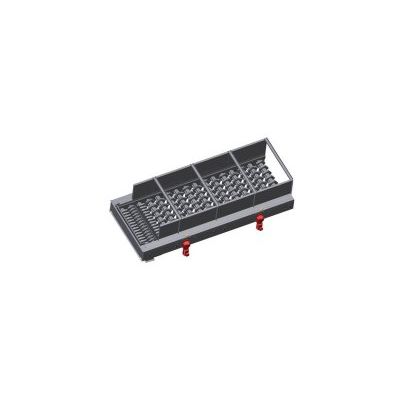

BRT HARTNER - Model SMW Series -Waste Screen
SMW Waste screen is a potent, compact screen segment unit for efficient separation of MSW into two fractions. The rotor elements consist of rugged steel tubes equipped with pentagonal screen discs. SMW Rotor Screens are flexibly adjustable to the individual separating behaviour and transport characteristics of the input material.
The axial distance of the single rotor elements can be adjusted gradually. Same renders possible to choose different axial distances over the whole length of the screen. The proven BRT design makes exchange of screen discs easy and fast to accomplish.
The machine can be upgraded with a speed control adjustment for optimal adjustment of the screen to the input material composititon. This additional feature enables the machine to operate with changing velocities. As further option, an inclination adjustment device can be used for changing the inclination angle. A prolonged treatment time of the material on the screen results in a higher screening quality.
- Efficient material separation into two fractions
- High material selectivity
- Effective separation of disruptive materials
- Easy to clean
- Budget-priced and long-life
- Insusceptible to di cult material
- Loosened-up and evened out material feeding to post-sorting processes Small footprint
- Easy Integration into existing sorting plants
- Easy exchange of single screen discs
- Dynamic change of screen arrangement
