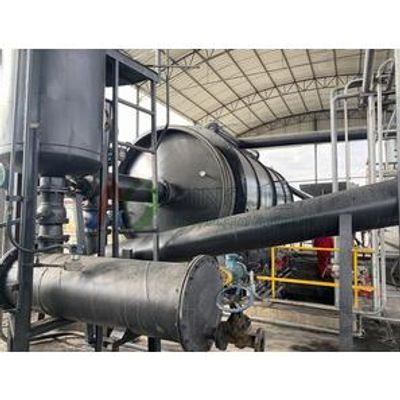

Mingjie - Model MJ -Waste Tire Plastic Pyrolysis Plant

• Waste tires The most popular materials for waste tires , final products can be fuel oil,
• steel wires and carbon black, average oil yield  40%-45%.
• Henan Mingjie Environmental Equipment Co., Ltd Waste Plastics Plastics can be PP/PE/PS/ABS,PP/PS  60%-70%,HDPE around 80%,
• ABS about 40%. plastic pyrolysis will generated a large scale of
• combustible gas,which will be recycled in the system.
• Henan Mingjie Environmental Equipment Co., Ltd Oil Sludge Final products from oil sludge will be mainly slag and oil, yield depends
• on the materials, the main purpose is to realize zero pollution releasing.
• Henan Mingjie Environmental Equipment Co., Ltd MSW Mixed MSW needs to be sorted firstly, plastics separated from MSW can
• be processed, oil yield of mixed plastics will be 30-50%.
• Henan Mingjie Environmental Equipment Co., Ltd Medical Waste Medical waste needs to be disinfected by microwave before processing in
• pyrolysis system, oil yield will be 30-50%.
• Henan Mingjie Environmental Equipment Co., Ltd Aluminized Paper Aluminized Paper can be processed by pyrolysis system, oil yield depends on
• materials , averagely plastic including materials is 35%, aluminum around 20%.
• Henan Mingjie Environmental Equipment Co., Ltd Waste Cables Oil yield of waste cables depend on the materials, PE cable can reach above
• 70%, Rubber cables around 35%, metals (copper or aluminum) will be separated.

• Customized design, configuration adjusted to meet your different requirements.
• Modular design cooling system, combining oil gas cooling system, oil storage tank and hydroseal, more convenient for transportation and installation.
• Auto screw discharging system, with water cooling, make sure high efficiency, production safety, fully enclosed to eliminate dust flying, meet higher environmental standards, better care workers’ health.
• Steel structure burner and reactor base, reduce civil works, and shorten installation time.
• All products certified by CE and ISO, also SGS.

Pyrolysis oil :

• Can be used directly in the heavy oil generator to get electricity.
• Part of it can be used back to pyrolysis machine for heating the reactor.
• Can be sold directly, widely used in ceramic factory, cement factory, steel factory, hotels, etc.
• Can be refined to be non-standard diesel, can be used in the diesel generator, boat, and other heavy duty low speed diesel engines.
• Will be recycled to the furnace for heating the reactor.

Carbon black :

• Can be pressed to be briquettes and used as fuel.
• Can be used to produce rubbers pads , rubber belt , soles, etc.
• Can be further reprocessed to be higher quality, and used as fortifier and filler of plastic and rubber industry or as color master batch.

Steel Wires ( from waste tires) :

• Can be sold directly to steel factory.

Combustible gas :

• Will be recycled to the furnace for heating the reactor.
