Wastewater Neutralization Systems
W2 Systems has been designing and building industry-leading pH neutralization wastewater treatment equipment for some of the top semiconductor and life sciences companies today. If you’re in such an industry, then you know that the wastewater produced by semiconductor fabrication can be rife with a range of harmful chemicals, such as arsenic, salts, alkalis, acids, solvents, antimony, and other pure organic and inorganic compounds. If the goal is to simply dump the leftover waste, it can’t be done while remaining in accordance with the EPA’s specifications without an adequate wastewater pH neutralization system. Our systems support you in bringing the wastewater closer to a base pH and making it ready to be dumped.
Industrial wastewater neutralization systems are sometimes referred to as pH neutralization systems—this is because the goal when implementing waste pH neutralization is to take the alkali and acidic wastewater streams and mix them together thoroughly until the wastewater is closer to a base pH and ready to be dumped entirely. If the pH of the wastewater is not within an acceptable range, then additional chemicals will have to be added to ensure the wastewater reaches a desirable pH level.
- Integrated secondary containment tanks
- Our designs are fully compatible with all chemicals
- Fully enclosed system design, including the pumps
- Best-in-class efficiency designs
- The most energy- and chemical-efficient methods of treatment
- Integrated, user-friendly controls with visual schematics and touch screen adjustments
- Flexible design
- Integrated tanks, monitoring systems, and sampling tanks
- Fully customizable design
- R- Reject pH out-of-spec. system
- S- Surge tank addition
- VI-valve Injection
- PI-Pump Injection
- Chemical Day tanks with distribution or injection pumps
- Touch Screen Upgrade
- BMS Connection or Ethernet Info Link
- Redundant Monitoring
- Recorder Upgrade
- Fully Customizable System
W2 Systems wastewater neutralization systems are designed to treat influent wastewater with pH from 0.1 to 13.99 pH units. Standard neutralization systems can treat up to 90 GPM with 48 minutes of retention. W2 has over twenty neutralization system installations including at:
- Applied Signal
- SIGEN
- AXON
- NDI – Alpha Division
- Micron Technology
- Micro Display
- Nakano Foods
- Magic Technologies
- B1 Series – Batch/Simplex Flow, up to 600 gallons retention volume

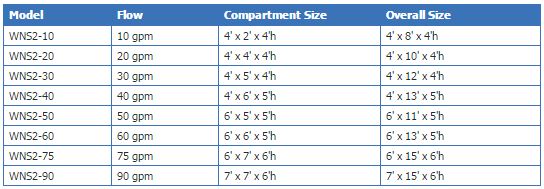

- F2 Series – Duplex Flow, up to 4400 gallons retention volume

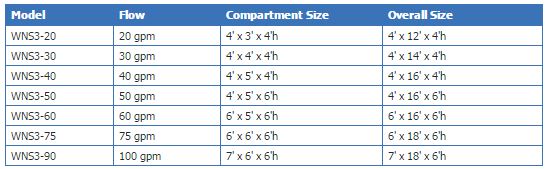

- F3 Series – Triplex Flow, up to 4700 gallons retention volume
