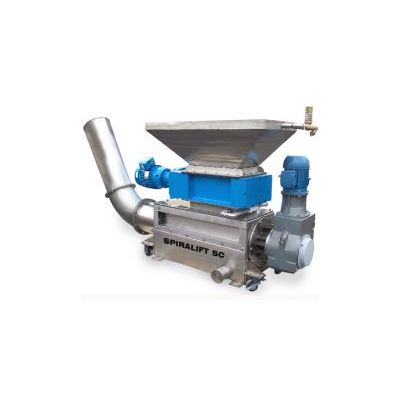

Spiralift - Model SC -Wastewater Screening Conditioner
The SPIRALIFT SC Screenings Conditioner provides efficient washing, compacting and de-odorizing of screenings. It can be installed behind a new or existing mechanical bar screen and quickly goes to work enhancing the screenings output. The processed solids are discharged as ground, uniform particles in a compacted plug, ideally conditioned for disposal.
The SPIRALIFT SC utilizes a rugged TASKMASTER Screenings Grinder to reduce solids to a small size exposing multiple surfaces. The ground solids are intensively washed to remove contaminants and organics. The screenings are then compacted and conveyed by unit`s powerful screw press and organics are returned to the flow.
The SPIRALIFT SC is provided with a stainless steel housing and PLC based control system. Two models are available: the SC8520 and the SC1620.
SPIRALIFT SC1620
- Auger HP: 3HP
- Inlet Hopper Dimensions: 47” X 20”
- Shredder Model: Taskmaster TM1620A
- Shredder Inlet Dimensions: 14.5” x 20”
- Shredder HP: 10HP
- Shredder Drive: Planetary Gear
- Shredder Shaft Size: 2-3/4” Hex
- Capacity: 175 cu. ft/hr. [5 m3/hr]
- Weight: 3800 lbs.
- Volume Reduction: Up to 85%
- Weight Reduction: Up to 85%
- Tank construction: 304SS or 316SS
- Hopper construction: 304SS or 316SS
- Auger construction: Alloy Steel
- Auger Drive: Helical-Bevel
- Brushes: Nylon, Replaceable Segments
- Discharge Pipe Size: 16” Dia.
- Spray Wash line: 1“ NPT.
- Return Drain Line: 4”
- Casters: Optional
SPIRALIFT SC8520
- Auger HP: 2HP
- Inlet Hopper Dimensions: 36” X 16”
- Shredder Model: Taskmaster TM8520
- Shredder Inlet Dimensions: 8” x 20”
- Shredder HP: 5HP
- Shredder Drive: Cycloidal
- Shredder Shaft Size: 2” Hex
- Capacity: SC8520 25 ft3/hr. [.72 m3/hr], SC8520-2 50 ft3/hr. [1.44 m3/hr]
- Weight: 2000 lbs.
- Volume Reduction: Up to 85%
- Weight Reduction: Up to 85%
- Tank construction: 304 SS or 316SS
- Hopper construction: 304 SS or 316SS
- Auger construction: Alloy Steel
- Auger Drive: Helical-Bevel
- Brushes: Nylon, Replaceable Segments
- Discharge Pipe Size: 4” Dia.
- Spray Wash line: 1“ NPT.
- Return Drain Line: 3”
- Casters: Optional
