BIOclear Vario - Model S -Wastewater Treatment Plant

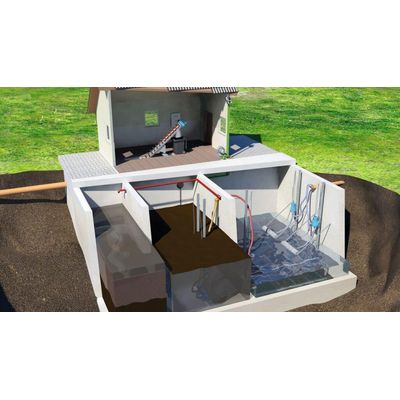

SBR treatment plant BIOclear vario-S for wastewater and sludge treatment up to 5,000 Pe. The BIOclear vario-S wastewater treatment plant is the ideal treatment system when sludge treatment is required in addition to wastewater treatment. This plant is mostly used in larger units for towns and residential areas with separate or combined sewage systems, in commercial, industrial companies and holiday resorts, as well as all comparable applications for the treatment of domestic wastewater. For the sewage treatment plant we supply the technical equipment for already existing tanks or newly constructed in-situ concrete tanks.
Technical equipment
As the first treatment stage, the wastewater first flows through the pre-sedimentation. Here, the raw sludge is settled together with the excess sludge as bottom and scum. As soon as the maximum sludge level is reached, discharge must take place.
For optimum adjustment of the biology, all pumps can be easily moved by means of a sliding pipe guide and always set to the correct height to suit the connection size. Underload operation can thus be effectively prevented.
The control of the wastewater treatment plant is carried out by a specially programmed PLC with display and operating options of a clearly arranged touch display. The measuring and dosing technology is individually selected according to the requirements in order to achieve the required treatment performance with the greatest possible reliability. For smooth operation management, we offer our own solution of remote data transmission and parameterization.
All fixing components and pipelines installed in the treatment tank are corrosion-resistant and made of stainless steel or plastic. The replacement of pumps and diffuser systems can be done during operation, so that they can be removed without having to get in. When using disc diffusers, the air distribution can be controlled by means of sliders from the access opening, so that an optimal oxygen supply of the activated sludge is possible.
In accordance with this concept, our supplied plants run with high flexibility together with great operational reliability.
- Re-adjustment option in case of underload and adjustability to the actual connection size
- Daily and weekly load fluctuations can be effectively absorbed
- Stability through safe regulation of the sludge volume in the SBR
- Separation of impurities in the inflow of the wastewater treatment plant to protect the plant technology
- Sludge treatment by sludge stabilization in the SBR reactor
- Redundancy of the main system parts
- Tool-free removal of the aggregates from the treatment tanks
- PLC control with own programming
- Remote data transmission and remote parameterization
- Measurement technology for monitoring and control of the processes
- Dosing technology for optimization of the effluent values
- Wastewater treatment with: C-degradation, nitrification, denitrification and P-precipitation
