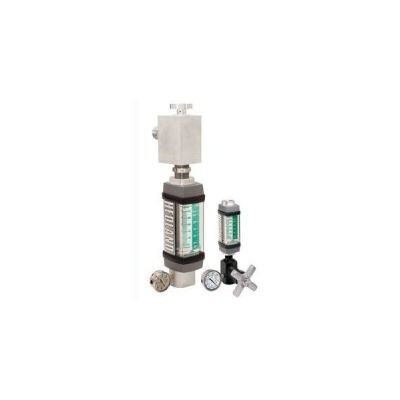

Hedland - Water-based Fluid Meter Test Kit

Test Kit; Flow ranges: 0.1 - 1.0 GPM (0.5 - 3.75 LPM) up to 10 - 150 GPM (50 - 560 LPM). Construction: Aluminum, brass and T303 stainless steel. Sizes: 1/4 to 1-1/2 inch ports. Ports: SAE, NPTF and BSPP. Pressure up to 6,000 psi (414 bar) maximum. Temperature up to 240 °F (116 °C). Accuracy ±2% full scale. Repeatability ±1%. Standard calibration: 1.0 specific gravity for water-based emulsions. Direct reading. Install in any position. 360° rotatable guard/scale. Easier to read linear scale. No flow straighteners or special piping required. Relatively insensitive to shock and vibration. Good viscosity stability (40 to 500 SUS / 4.2 to 108 cSt). Consult factory for other viscosities.
