PUK Vari Boost - Model 3-60 -Water Booster Pump

• Manufacturer: Pumps UK Ltd
• Model: PUK VARI BOOST 3-60
• Inlet Connection: 1 inch BSPM Suction
• Outlet Connection: 1 inch BSPM Discharge
• Power Supply: 230v 1~ Single Phase (50Hz)
• Rated Power: 0.75kW (2.9A)
• Recommended Supply Tank: 500 litres

Example Pressure/Flow Performance

• 3 Bar = Up to 1.2 l/s | 74 l/m | 4.4 m³h
• 4 Bar = Up to 1.0 l/s | 60 l/m | 3.6 m³h
• 5 Bar = Up to 0.75 l/s | 45 l/m | 2.7 m³h

Optional Installation Kit

• 2 x 1 inch Flexible Hose with F/F BSP Connections
• 2 x 1 inch M/M Nipple
• 4 x Anti-Vibration Mounts with Bolts/Washers

We have integrated a Nasco Mida inverter to control the pump automatically and have enabled dry running protection should you have a water feed issue. the pre-fitted 8-litre pressure vessel ensures smooth running and reduces the run time of the pump. We use a WRAS approved pump and high-quality fittings to ensure water quality in potable water applications.

We test and pre-commission each unit before shipment so that installation is as simple as possible. All that is required is for your to bolt the pump in place, fit the inlet/outlet and turn on the power.

For optimal operation, this pump should be connected to an adequately sized break tank so that the outlet flow rate will not drain the tank too quickly when the system is at full flow. To give a 5 minute storage time the minimum size for the tank would be 300 litres but ideally, we suggest a 500-litre tank.

Example Pressure/Flow Performance

• 3 Bar = 1.2 l/s (74 l/m)
• 4 Bar = 1.0 l/s (60 l/m)
• 5 Bar = 0.75 l/s (45 l/m)

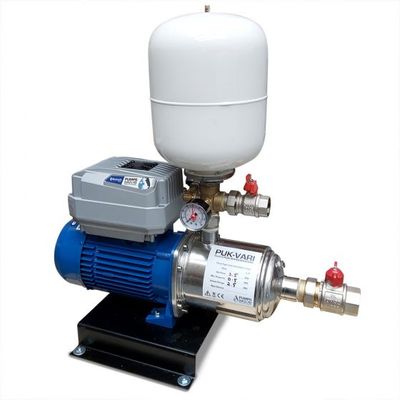

Please Note: The pump pictured is shown fitted with union valves, these are not standard, please call to upgrade.
