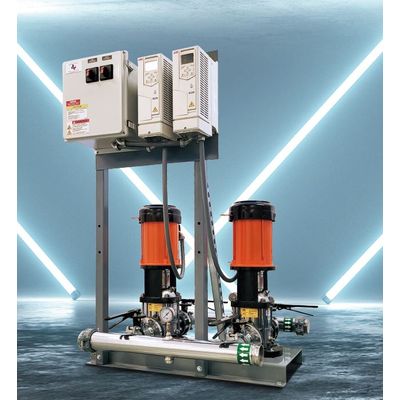

Tigerflow - Model TEXAN DCP -Water Booster System
The TEXAN DCP (Drive Control Platform) booster system combines the power of the ABB variable frequency drives, and TIGERFLOW’s control expertise to bring an intelligent system for water booster applications.
Most popular related searches
water booster system
booster system
water booster
municipal water distribution
domestic water booster
water temperature monitoring
high-pressure washing
package pumping system
variable frequency drive
bladder tank
- DCP technology pump control
- 100kAic SCCR rating
- Tier 1 level control redundancy with rotating master
- Drinking water certifications for NSF 61/372
- UL/C-UL listed packaged pumping systems (QCZJ)
- UL Standard 508A – standard for industrial control panels
- Bluetooth capability with remote monitoring and diagnostics (TIGERFLOW Support team)
- Pump control: 2-8 pumps
- Flow rate: 50-3000 gpm
- Head: 20-300 psi
- Temperature 0-100 degF
- Power: 208 Single Phase, 208-230 VAC 3-phase, 460 VAC 3-phase
- MAWP: 500 psi
- Contact the factory for other conditions
- All piping designed in accordance with ASME B31.1 standard
- Check valves – Non-slam, silent type
- Isolation valves
- Grooved butterfly valves
- Low lead ball valves
- AISI 304SS, Schedule 40 piping
- Unit is factory primed and painted with corrosion resistant machine grade enamel
- Model TF-132E, 132-gallon, 150# ASME Code, Bladder Tank
- Model TF-185E, 185-gallon, 200# ASME Code, Bladder Tank
- Amtrol Tanks
- Tank Feed Assembly
- Phase monitors
- Water temperature monitoring
- Wire-to-Water Efficiency calculations
- Inertia bases or vibration pads
- Coupling Reducers
- Gauges
- XY Test Report
- Commercial and residential water booster systems
- Irrigation units
- Water supply for industrial and pharmaceutical usage
- Food and beverage plants
- Data Centers
- Municipal water distribution
- Water treatment
- High pressure washing
