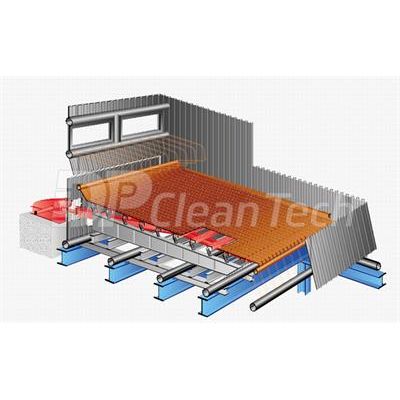

DP CleanTech - Water Cooled Vibrating Grate

SHARE

DP’s Water Cooled Vibrating Grate (WCVG) is a grate technology developed specifically by DP for the high efficiency firing of biomass at the lowest possible emission rates. It is an integral component to the DP boiler product range, and is a highly reliable and proven technology which has been refined and optimized by DP through many years of operational experience and pioneering modifications. It has been fully integrated with DP’s patented combustion system to produce the most efficient High Pressure, High Temperature straw-fired boiler technology in the world.

Most popular related searches
water cooling
cooling water
low carbon
combustion air
combustive air
cooling system
cooling water system
vibrating conveyor
air fire
carbon allowance
The Water Cooled Vibrating Grate is a well-established grate system that provides an intermittent vibration for conveying and distributing fuel evenly, and continuous discharge of fuel ash. It is particularly suited to biomass fuels and has a very efficient carbon burnout rate, which allows an increase in over-fire air, and a subsequent reduction in the amount of thermal NOx created. It has few moving parts, and therefore has low maintenance requirements.

The Water Cooling system provides the necessary cooling to reduce heat damage to the grate and maintain the long term integrity of the grate surface. Heat damage to the grate - such as warping - can lead to the need for additional combustion air which reduces efficiency.
  • High steam generation capacity and consistency
  • Lowest possible emissions
  • Lowest possible emissions
  • Automatic ash discharge for high load continuous operation
  • Automatic ash discharge for high load continuous operation
  • Minimum maintenance. Continuous operation capability
  • Minimum maintenance. Continuous operation capability
  • Multi-fuel compatible
  • Multi-fuel compatible
  • High moisture (up to 60%) fuel capability
  • High moisture (up to 60%) fuel capability
  • Automatic adjustment for load
  • Automatic adjustment for load
  • Low Unburned Carbon (UBC)
  • Low Unburned Carbon (UBC)
