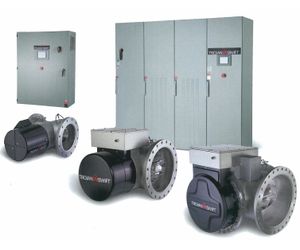

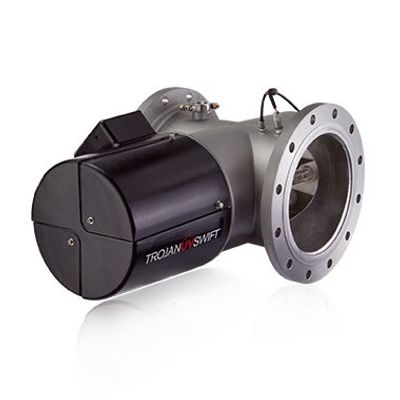

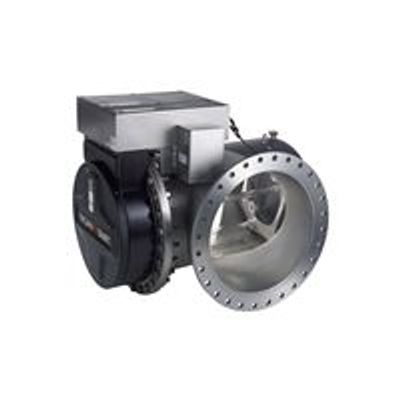

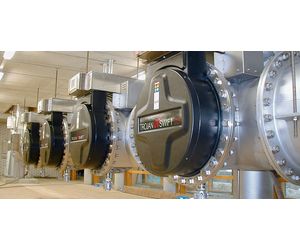

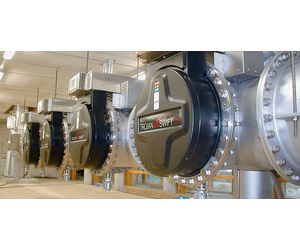

Trojan - Model TrojanUVSwift -Water Disinfection System

The TrojanUVSwift is a testament to our commitment to providing water confidence. This compact system has demonstrated its installation flexibility and effective, reliable performance around the world in hundreds of installations. Available in multiple inlet/outlet diameters, it is well suited to drinking water disinfection projects – new and retrofit applications – for a wide range of flow rates. The TrojanUVSwift is also upgradeable to models designed to treat the compounds responsible for seasonal taste and odor events (e.g. MIB and geosmin) and other chemical contaminants.

Engineered and built for dependable performance, the TrojanUVSwift requires a minimal number of lamps to treat a given flow, and is serviceable from one side for easy maintenance. It also incorporates innovative features to reduce O&M costs, including efficient, variable output, electronic ballasts and Trojan’s revolutionary ActiClean system – the industry’s only dual-action, sleeve cleaning system.

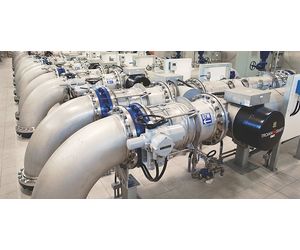

Hydraulically efficient and compact design minimizes head loss and maximizes dose delivery. It’s engineered to fit into restrictive pipe galleries and can be installed vertically or horizontally, even immediately after a 90˚ elbow

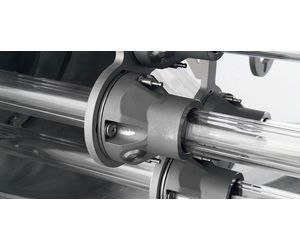

The optional dual-action ActiClean® sleeve cleaning system uses a combination of mechanical wiping and an NSF 60-certified gel to provide unparalleled sleeve cleaning. Quartz sleeves and intensity sensors are cleaned automatically, without disrupting treatment.

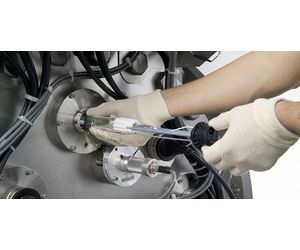

The UV chamber is fully serviceable from one side – allowing the system to be installed tight to walls, other equipment or piping. Routine maintenance procedures, including lamp change-outs and sensor calibration checks, are simple and require minimal time.

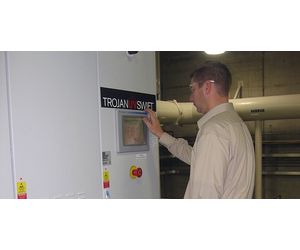

This PLC-based system controls all UV functions and dose pacing to minimize energy use while maintaining required dose. The controller communicates with plant SCADA systems for centralized monitoring of UV performance, lamp status, power levels, hours of operation and alarm status.

Chambers can be configured for future expansion to cost-effectively meet increased capacity, system redundancy, advanced oxidation (UV AOP) treatment. The upgraded UV AOP system, known as the TrojanUVSwift®ECT, provides year-round treatment and simultaneous treatment for seasonal chemical contamination events including but not limited to taste & odor events and algal toxins.
