ImWater designs and manufactures all types of Filtration Systems for the industrial and municipal market, in carbon steel and stainless steel, and with diameters from 500 mm to 4 meters.
Most popular related searches
pressurized multimedia filter
water filtration system
multimedia filter
drinking water
horizontal pressure filter
pressure filter
vertical pressure filter
activated carbon
water filtration
anthracite sand
Filter types:

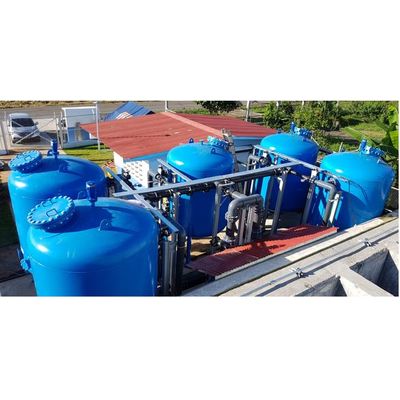

- Vertical pressure multimedia filters
- Horizontal pressure multimedia filters
Filters materials and finishes:
- Carbon steel epoxi paint (drinking water grade) (usual)
- Carbon steel with ceramic internal paint (special)
- Carbon steel with internal rubber linning (special)
- Stainless Steel (304, 316, duplex, superduplex) (special)
Design codes:
- DIN
- ASME VIII Div.1
- U stamp
Diameters: 500 – 4000 mm
Working pressure: 1-10 bar (possibility of higher pressures, under request)
Filtration media:
- Activated carbon
- Anthracite
- Silex sand
- Garnet
- Gravel
- Turbidex (special)
- Ionic exchange resins (special)
STANDARD MODELS FOR VERTICAL FILTERS
- D=1400mm. Hc=1500-2000 mm. Flow: 12-20 m3/h
- D=1600mm. Hc=1500-2000 mm. Flow: 16-26 m3/h
- D=1800mm. Hc=1500-2000 mm. Flow: 20-33 m3/h
- D=2000mm. Hc=1500-2000 mm. Flow: 25-41 m3/h
- D=2200mm. Hc=1500-2000 mm. Flow: 30-50 m3/h
- D=2400mm. Hc=1500-2000 mm. Flow: 36-59 m3/h
D=Diameter. Hc=Cylindrical height
For filtration speeds of 8-13 m/h
Other dimensions available on demand.
STANDARD MODELS FOR HORIZONTAL FILTERS
- D=1400mm. Lc=4000-11000 mm
- D=1600mm. Lc=4000-11000 mm
- D=1800mm. Lc=4000-11000 mm
- D=2000mm. Lc=4000-11000 mm
- D=2200mm. Lc=4000-11000 mm
- D=2400mm. Lc=4000-11000 mm
D=Diameter. Lc=Cylindrical length
Flow depending on selected dimensions. Ask for specific models.
Other dimensions available on demand.
