Techno-AC - Model AT-107N -Water Leak Detector

Brief description AT-107N

• Low cost
• Sensor with magnetic base
• Contact rod
• Operation in low temperatures

Application AT-107N

• Location of leakages in small pipelines
• Inspection of isolation valves

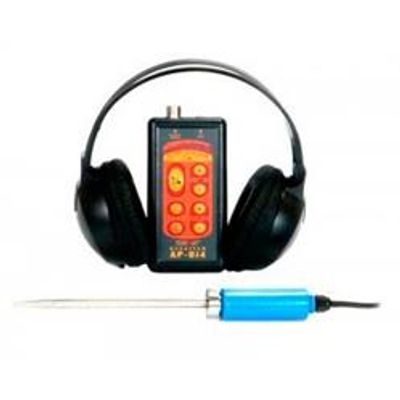

Standard set AT-107N

• Receiver AP-014
• Portable acoustic sensor ADM-227
• Headphones
• Set carrying bag
• Operation manual
• Technical passport

Method of operation

First of all, high-quality microphone allows to hear slightest noises, caused by running water. Moreover, the display of receiver indicates the noise level. As a result, magnetic base provides easy mounting on metal pipeline of small diameter.

Two methods of usage:

• Firstly, mounting of the sensor on a pipe for leakage detection;
• Secondly, usage with extension rod for inspection of isolation valves.

• Frequency range («Broadband») 0,31…2,00 KHz
• Visual indication LED scale (7 values)
• Sound indication Headphones
• Power supply Voltage 1,8 to 4V – alkaline batteries АА type 1,5 V (2 pcs.)
• Time of continuous operation not less than 10 hours
• Operation temperature -30ºС…+60ºС
• Ingress protection rating IP54
• AP-014 receiver dimensions 145×70×24 mm
• Weight of the electronic unit 0,15 kg
