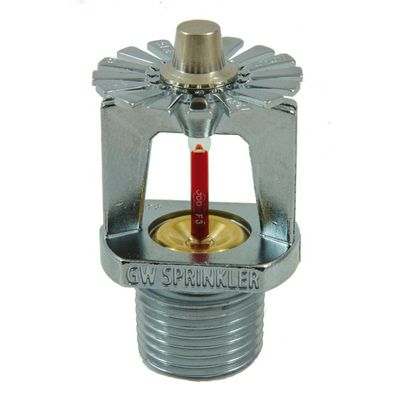

GW-SModel LoFlow K-15 -Water Mist Sprinkler Low Pressure, Automatic

SHARE

The Loflow K15 Sprinkler series contain fine water spray sprinklers (water mist) with automatic quick response for fixed fire protection of Maritime, offshore and on-shore applications. The sprinkler heads are installed in fully hydraulic designed wet pipe sprinkler systems. The sprinkler systems must be designed and installed in accordance with GW Sprinkler A/S installation manual no.: 715. Loflow K15 sprinklers are also suitable sprinklers for foam enhanced sprinkler systems, deluge systems and local application systems.

Most popular related searches
  • K-Factor: 15 (metric)/K 1.04 (US)
  • Spray angle: 160°-175°
  • RTI: < 50ms"1/2(QR, quick response)
  • Bulb release temp.: 57,68,79, 93, 141°C
  • Droplet Size: DN9o< 300 (am
  • Material Nozzle: Brass
  • Material Deflector: Brass
  • Finish: Chrome Plated
  • Material Filter: Stainless Steel 316, mesh
  • Installation: Pendent
  • Weight: 74g
  • Thread: 1/2"BSPT(NPT optional)
  • Working Pressure: 6-16 Bar
  • Extinguishing Agent: Fresh water, sea water or foam enhanced water.
