Zetian - Model ZCH-02 -Water Oil Sensor

FromHangzhou Chunlai Technology CO., Ltd.

SHARE

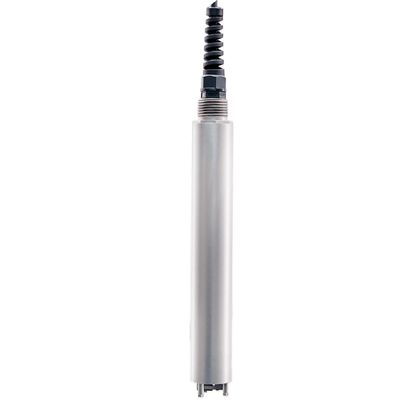

The ZCH-02 is an intelligent sensor for oil-in-water that adopts RS485 communication interface and standard Modbus protocol and has its own cleaning brush. Based on the relevant fluorescence detection technology, it has the advantages of good selectivity, strong anti-interference, high sensitivity, no pretreatment, and fast measurement. At the same time, it has the functions of calibration, recording, analysis, diagnosis and so on.

Most popular related searches

water monitoring sensor

water quality sensor

water quality monitoring

water monitoring

UV fluorescence monitoring

waste monitoring sensor

waste quality monitoring

With temperature and pH compensation;
Each electrode can be replaced independently, with simple operation and less maintenance;
Corrosion-resistant shell, waterproof grade IP68, can work underwater for a long time;
Onsite installation of the sensor is convenient and fast, realizing plug and play;
Default RS485 communication interface, standard Modbus protocol, easy to integrate.

Measuring principle: UV fluorescence method
Measuring range: 0-5.000/50.000ppm
Measurement accuracy: < 5%
Resolution: 0.001ppm
Communication interface: RS485, standard Modbus protocol

Detection limit: 0.01 ppm
Working environment: 0-60℃ (no ice), 0~2bar
Working voltage: 12V-24V DC
Cable length: standard 3 meters cable, can be customized extension
Size: D34mm, L205mm
