Bluslot - Water & Oil Well Screen

SHARE

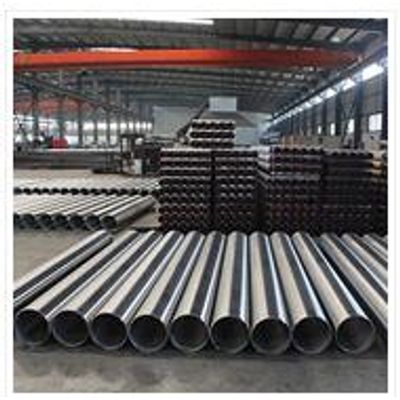

There is a lot of sand, gravel, and other substances in the aquifer of the well, these materials will wear equipment and well pumps, causing expensive losses. A water well screen is needed to remove these impurities. Stainless steel v-wire (wire wrap) screen pipe is the main screen pipe type used in the water well industry, it is welded together by v-shaped wire and support rod through advanced circular resistance welding. This kind of screen tube has the characteristics of firm structure, large opening area, corrosion resistance, nonblocking, and no maintenance.

Most popular related searches
water well screen
water well
well screen
wedge wire well screen
water well industry
well water
wedge wire screen
well water well
industrial water well
water screening
  • Material: 304, 316, 316L, 321, 904L, 2205, 2507, C276…(or as your need)
  • Slot size selection: 0.10mm, 0.15mm, 0.20mm, 0.25mm, 0.30mm… (or as your need)
  • OD: 1” – 34”
  • Length: Up to 6500mm
  • Depth & height: As your need.
  • Open area: Up to 60% (high flow, low-pressure drop)
  • Installation location: Aquifer
  • Application: Municipal water source well, Domestic well, Agricultural water well, Groundwater, Industrial water well.
  1. Corrosion-resistant material
    Contact with water and the use of anti-corrosion materials can improve the service life of products.
    Due to the different use environment, it is necessary to select appropriate raw materials in combination with water quality.
  2. No clogging, Easy to clean
    Positive type wedge wire screen pipe, The contact surface with water is a smooth filter surface.
    There are only two points of contact between impurities and the surface, particles can pass through the screen without being stuck by the screen gap which will not cause a clogged.
    Reduce maintenance and replacement cost of products.
  3. High strength, sufficient column, and collapse strength.
  4. Large opening area, the high filtration area ratio
    Continuous slotting structure.
    Increase the water flow rate and reduce energy consumption.
    The large opening area percent reduces the pressure drop and the speed of water entering the screen, it can make the water flow into the screen slowly so as to avoid sand from entering the screen tube under high pressure and causing abrasion. Prolong the service life of water well.
    Strong transmission capacity.
  5. The wedge wire well screen pipe has a solid structure, high porosity, and precise gap size. Particularly suitable for fine sand and silt formations in water wells.
