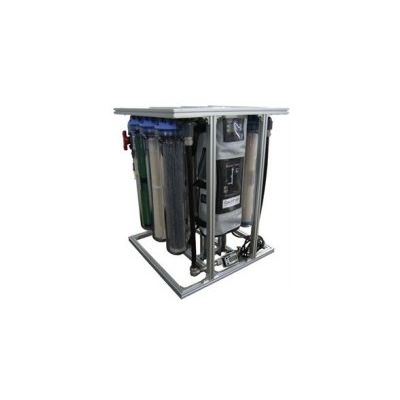

Can Pure WPS - Model 5 -Water Purification System

The Can Pure WPS suite of products is used by Canada`s network of urban and heavy urban search and rescue teams (USAR and HUSAR), the Ontario Provincial Police CBRN Team, fly-in fishing resorts, disaster aid groups and remote mining and exploration camps.

Choose from a host of supporting items depending on your application including hose packages, storage bladders, water transfer pumps, chlorination systems, mil-spec shipping cases, intake strainers and more. Custom design and engineering packages available.

This system is designed to treat fresh water from lakes, rivers, fire hydrants, onion tanks, etc. Designed for maximum flexibility, the core system is designed to accept raw feed water, purify it and distribute as needed. How water and electricity is provided to the unit is up to the end user. Some users draw water from a pressurized source such as a fire hydrant or garden hose while others use a portable pump to move water from a lake or river. Some users draw 120V wall power while others use a portable generator or alternate energy source (solar, vehicle, etc.) using the optional 12V inverter. The raw water is treated by microfiltration and NSF 55, Class A certified ultraviolet light. Each unit includes 6 stages of filtration with 5 different filter configurations for different types of raw water. The system produces treated water with sufficient flow and pressure to fill bottles, tanks, bladders, etc. with further options to repressurize and distribute as needed available.

• Eliminates a wide spectrum of turbidity, organics, micro-organisms, cysts, virus and bacteria.
• Highly portable, deployable and operable by 1-2 people
• 6 stage, advanced, customizable micro-filtration system
• 100% washable and reusable pre-filters
• NSF 55, class A certified ultraviolet light (UV) disinfection
• Extensive safety features including pressure relive valve, flow restrictor, UV intensity monitor, low UV alarm, data logging and more
• Premium features including inlet shut off, cold weather recirculation, clear view filter housings, digital flow meter and more

System Output / Production

• Standard Filter Config: 13.2 LPM / 3.5 GPM  (19,051 LPD / 5,040 GPD) with input of 15-19 LPM / 4-5 GPM@ 30-40 psi.

*Output may decrease w/ improper filter maintenance, inlet garden hose adapter, extreme conditions and/or a reduction in the volume/PSI of feed water. Output rated with base filter configuration under ideal conditions.

Weight / Dimensions

• 37.65 kg (83 lb)* / 0.585 x 0.585 x 0.735 m (23 x 23 x 29”)

*Dry weight excludes case, filters and spares kit.

• Ship Weight & Dims with wood case & spares kit: 73.26 kg  (161.5 lb) 0.66 x 0.66 x 0.99cm (26 x 26 x 39”)

Electrical Requirements

• 130 watts, 120V AC. GFI cord set included. Optional 12V DC inverter package available for use with vehicles and solar applications. Optional diesel powered pump/12V generator available.

Hydraulic Requirements

• For best performance supply with raw, feed water at the rate of 15-19 LPM / 4-5 GPM@ 30-40 PSI.

Inlet / Outlet

• Inlet: 3/4” food grade female cam & groove. Outlet: 3/4” food grade male cam & groove. Includes garden hose adapter fitting for both inlet and outlet. Customized fittings and/or adapters available upon request.

6 Stage, Advanced Micro-filtration System

• 100% washable and reusable pre-filters
• High capacity sediment filters
• Oganic trap for tannin and colour removal
• High capacity 1 micron absolute filtration
• Features include inlet shut off, pressure relief valve with cold weather circulation,  clear view filter housings, digital flow meter and more
• Optional items include next generation washable intake strainer and specialized cartridges for fine silt, hydrocarbons, taste/odour and more

Next Generation UV Disinfection System

• NSF/ANSI 55 Class A certified, UL Listed Canada and US
• Dynamic flow restrictor and durable lamp with 2 year life span
• UV intensity monitor with test of sensor button, real time display of UV dose, alarm history, lamp hours and more
• Data logging - Direct to computer or download to any SD mini data card
• Low UV alarm, lamp operation Indicator, audible alarm, visual alarm, low UV auto shut off

Ships With

• Includes spares parts and repair kit, GFI electrical cord, operating manual, inlet/outlet garden hose adapter fitting and reusable wood crate. Filters are not included—please choose from available packages. Consumables required will fluctuate with condition of raw water source, please contact your distributor for more information and customized supply kits.

Optional Accessories

Plug n’ Play components and accessories are available including consumable kits, 12V DC inverter kits, electric , gasoline or diesel powered pumps, generators, food grade hose, water quality test kits, collapsible water bottles, portable water storage bladders, multi-line distribution pumps, and more.

Optional Modules

For fixed installations with water sources high in organic tannins, an Organic Colour Removal system or OCR can be added to reduce maintenance and operating costs associated with disposable organic trap media cartridges.

Optional Ship/Storage Cases

Optional mil-spec, ship/storage cases from Pelican.

Remote Industry

The Model #5 Can Pure Water Purification System is the ideal solution for remote mining, forestry, tree planting, wildire, forest fire and outfitter operations. It is an ultra portable, highly flexible micro water treatment system. Ideal for permanent or semi-permanent installations to support camp life including water treatment for shower, kitchen, laundry, cooking, flush toilets, industrial machinery and more. This water purification system is ideal for surface water sources including those with high levels of natural organic tannins and/or cold temperatures.

Disaster Relief, Humanitarian Aid

Low cost - deploy more units to more locations. Easily transportable to remote regions. No special training or support required. Support up to 3,810 people / unit / day (5 L / person / day). Collapsible bottles available. This water purification system is ideal for field medical hospitals, disaster relief teams, displaced peoples, emergency centres and fire departments. The Model #5 Can Pure Water is an ideal solution when safe drinking water is needed for deployments involving earthquakes, tsunamis, ice storms, panmedic outbreaks such as Cholera, hurricanes, etc.

Rescue Teams, Military Theatre

Compact, rapid deployment, one system for all potable water - showers, kitchen, DECON, power tools, etc. Protect the health of critical rescue personnel. Storage bladders and hose packages available. This portable, easy to use water purification system is perfect for heavy urban search and rescue teams (HUSAR), urban search and rescue teams (USAR), homeland security inititatives, fire departments, municipal / state and provincial emergency teams, military operations and more.

Urban Emergencies, Municipal Response

Compact, easily stored in fire halls and emergency shelters. Ideal response to boil water advisories during power outages and natural disasters when bottled may not be available. 1 person portable. Collapsible bottles available. This portable, easy to use water purification system is perfect for homeland security inititatives, fire departments, municipal / state and provincial emergency teams and more. The Model #5 water purification system from Global Hydration is the perfect tool when preparing for or responding to boil water advisories, water emergencies, power outtages and more.
