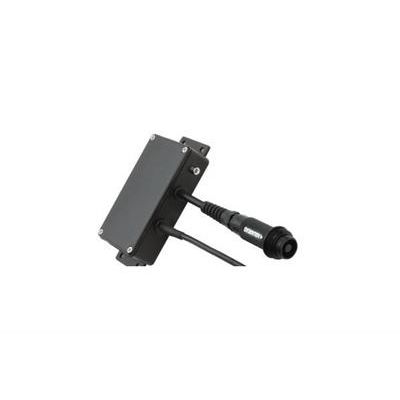

BlackBox - Model SDI-12 or Modbus RS485 -Water Quality Data Converter System
The BlackBox is a data converter that allows any model of Aquaread water quality probe to be interfaced directly to a third party processing, control or logging device. With a choice of industry standard digital interfaces the BlackBox offers a versatile and cost effective data conversion solution.
Most popular related searches
water quality
water quality probe
water monitoring sensor
water level logger
barometric pressure sensor
water quality data
barometric pressure
level data logger
level logger
pressure sensor
- Compatible with all Aquaprobes and AquaPlus probes
- Integral barometric pressure sensor for depth and DO correction
- Able to output data from any Aquaread water monitoring sensor; standard, optical or ISE types
- SDI-12 Digital interface
- Modbus (RS485) Digital Interface
- Wide operating voltage range
- Rugged construction with strong fixing flange
- LED status indicator
- IP67 rated
- Suitable for long term unmanned deployment
- Input Voltage: 10V - 14V DC
- Input Current [awake]:
- - 40mA [AP-Lite / AquaPlus / AP-700 - AP-2000 )
- - 100mA (AP-5000 or AP-7000 attached)
- - 500mA (AP-7000 during self cleaning cycle)
- Input Current (asleep): < 1OOuA (includes current drawn by attached Probe]
- Protection Class: IPB7
- Dimensions: 140mm x 65mm x 30mm
- Weight: 400g
- Connections: Probe socket on flying lead & 1M screened power/data cable
- Fixing: Aluminium flange with four 5mm mounting holes
- Digital Interface: User selectable between CD 1-12 & Modbus (RS485)
- Update rate: All data is refreshed every 2 seconds
