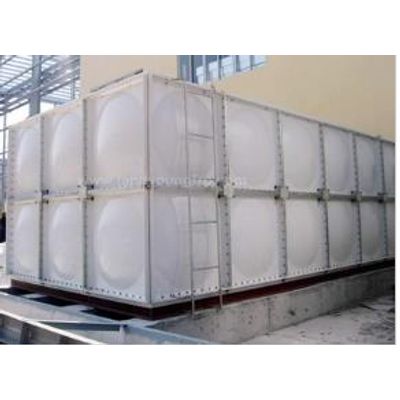

Landyoung - Model SMC GRP (or FRP) -Water Tank

GRP PANEL TYPE WATER STORAGE TANKS - APPLICATIONS

LANDYOUNG GRP Tanks can be installed at ground level, on top of or inside buildings, or on steel towers. Typical applications include:municipalities, industrial users, agriculture, aquaculture, reservoirs, hotels, hospitals, offices, private homes and other building complexes, as well as high volume long-term storage where regular piped supplies may not be available.

GRP PANEL TYPE WATER STORAGE TANKS - ADVANTAGES

LANDYOUNG pure water storage system derive from the design (modular panels designed for optimum functional efficiency), the material & process(hot pressed GRP), and the packaging (kit).

What is Sectional?
The use of sophisticated modern computer aided design techniques determined the optimum shape for the tank panels. Below are some of the many advantages:

High strength and Durability

• No service failures reported in 25+ years.
• Hot pressed sheet mould compound (SMC) at 150 ? and 100 Kg pressure per cm2 produce  a uniform panel of solid homogenous construction.
• Average serviceable life for panels in normal conditions without maintenance is 40 years.
• Tested for heavy impact, weather, loads, settling and earth quakes.
• Safety factor of 8 x above maximum anticipated load.
• Excellent ultra violet (UV) resistant characteristics and performance.
• Option of pre-insulated panels to avoid the risk of freezing.

Adaptability

• Flexible sizes and shapes by design could range from 1 m3 to 4,000 m3.
• Can easily be extended at any time as storage requirement increase.
• Can be relocated easily from one location to another several times.
• Limited to 4.00 m in height

Corrosion resistant and Anti-rusted

Non-leakage

• Exclusive design of convex bottom panels with flexible rubber sealant is most effective against risk of leakage.
• Modular panel with low thermal coefficient and flexible rubber sealant ensures a leak free design.

Physical Properties

• Exceptional panel strength in compression, tension, torsion (Rigidity)
• Panels individually designed for optimal performance with a safety factor of 8.
• Long life UV protection.
• Low thermal conductivity.

Water Quality

• Smooth mirror surface of the panel prevent dirt adhesion and bacterial growth.
• Light proof to prevent algae growth. Light transmittance for panels including manhole cover is 0,00%.
• The hot pressing method for panels eliminates styrene and makes it an ideal product for storing drinking water.
• Tanks are completely sealed, manhole covers and air vents are by design dust and insect proof.

Easy to Assembly & Maintenance

• Despite its` great strength, GRP is lightweight – just 1/3 one third the weight of an equivalent  steel panel. All panels can be lifted by hand, with no special equipment required even where access is difficult, and installation can progress quickly and efficiently.

GRP PANEL TYPE WATER STORAGE TANKS - SPECIFICATIONS

• Water tank size: 1 m³-4000 m³
• Panel size: 0.50.5m, 10.5m, 11m, 1.50.5m, 1.51 m, the panel thickness is depends on tank height.
• Connection type: Bolted Assembled.
• Foundation: Concrete foundation and U-steel bottom base

• Specific Gravity 1.8
• Glass contentMore than 30%
• Tensile strength1,020kgf/cm²  (9.996KN/cm²)
• Young’s modulus1.40x105 kgf/cm²   (13.7Gpa)
• Flexural strength1,650 kgf/cm²  (16.17 KN/ cm²)
• Impact strength52.5 kgf/cm²   (0.515KN/ cm²)
• Compressive strength3,010 kgf/cm²  (29.50 KN/ cm²)
• Shear strength960 kgf/cm²  (9.41 KN/ cm²)
• Thermal expansion2.16x10-5/ºC
• Thermal conductivity (single panel)
• (insulated panel)0.15 Kcal/m hrºC  (630 J/ m hrºC)
• 0.02 Kcal/m hrºC  (84 J/ m hrºC)
• Coef. of overall heat transmission
• (single panel)
• (insulated panel)5.0 Kcal/m hrºC  (21 KJ/ m hrºC)
• 1.0 Kcal/m hrºC  (42 KJ/ m hrºC)
• Water absorptionLess than 0.2%
• CavityLess than 2%
• Light transmittance (grey panels)0.00%
