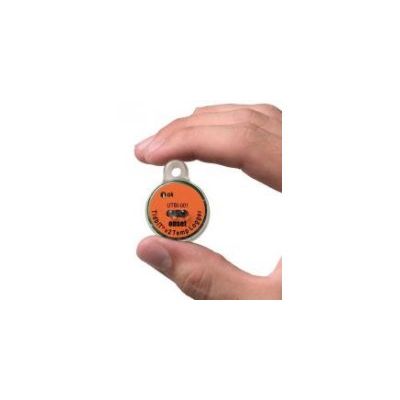

Onset HOBO - Model UTBI-001 TidbiT v2 -Water Temperature Data Logger
Only 3x4 cm, this tiny data logger measures temperatures over a wide temperature range. The TidbiT v2 provides 12-bit resolution and has ±0.2 °C accuracy. It is designed for outdoor and underwater environments and is waterproof to 300 m (1000 ft). An optical USB interface allows users to offload data in seconds. Please note, a solar radiation shield is required to obtain accurate air temperature measurements in sunlight (RS1 Solar Radiation Shield, assembly required; or M-RSA pre-assembled Solar Radiation Shield).
Most popular related searches
temperature data logger
data logger
solar radiation shield
water temperature data logger
radiation shielding
temperature logger
temperature monitoring
temperature sensor
water data logger
waterproofing
- Onset`s smallest temperature data logger
- Waterproof to 300 meters (1,000 feet)
- Data readout in less than 30 seconds via fast Optic USB interface
Environment:
The UTBI-001 Data Logger is for use inOutdoor and Underwater environments
Measurements:
The UTBI-001 Data Logger supports the following measurements:
Temperature, Water Temp
Temperature Sensor
- Operation range:*
- -20° to 70°C (-4° to 158°F) in air;
- maximum sustained temperature of 30°C (86°F) in water*
- Accuracy: 0.2°C over 0° to 50°C (0.36°F over 32° to 122°F)
- Resolution: 0.02°C at 25°C (0.04°F at 77°F)
- Response time: 5 minutes in water; 12 minutes in air moving 2 m/sec; 20 minutes in air moving 1 m/sec (typical to 90%)
- Stability (drift): 0.1°C (0.18°F) per year
- Real-time clock: ± 1 minute per month 0° to 50°C (32° to 122°F)
- Battery: 3 Volt lithium, non-replaceable
- Battery life (typical use): 5 years with 1 minute or greater logging interval
- Memory (non-volatile): 64K bytes memory (approx. 42,000 12-bit temperature measurements)
- Weight: 19.6 g (0.69 oz)
- Dimensions: 3.0 × 4.1 × 1.7 cm (1.2 × 1.6 × 0.68 in.); mounting bail 4.6 mm (3/16 in.) diameter hole
- Wetted materials: Epoxy case
- Waterproof: To 305 m (1000 ft.)
- Logging interval: Fixed-rate or multiple logging intervals, with up to 8 user-defined logging intervals and durations; logging intervals from 1 second to 18 hours. Refer to HOBOware software manual.
- Launch modes: Immediate start, delayed start
- Offload modes: Offload while logging; stop and offload
- Battery indication: Battery level can be viewed in status screen and optionally logged in datafile. Low battery indication in datafile.
- NIST certificate: Available for additional charge
- The CE Marking identifies this product as complying with the relevant directives in the European Union (EU).
