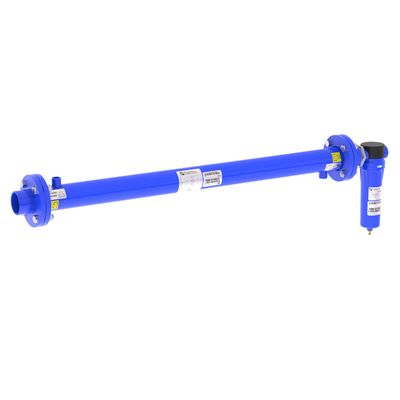

OMI - Model A-AV -Water to Air After-Coolers
The water after-coolers are composed of two parts: a high efficiency shell in tube air-water heat exchanger, offering little pressure drops to cool air, and a cyclone condenser separator to separate and eliminate the condensed water.
Most popular related searches

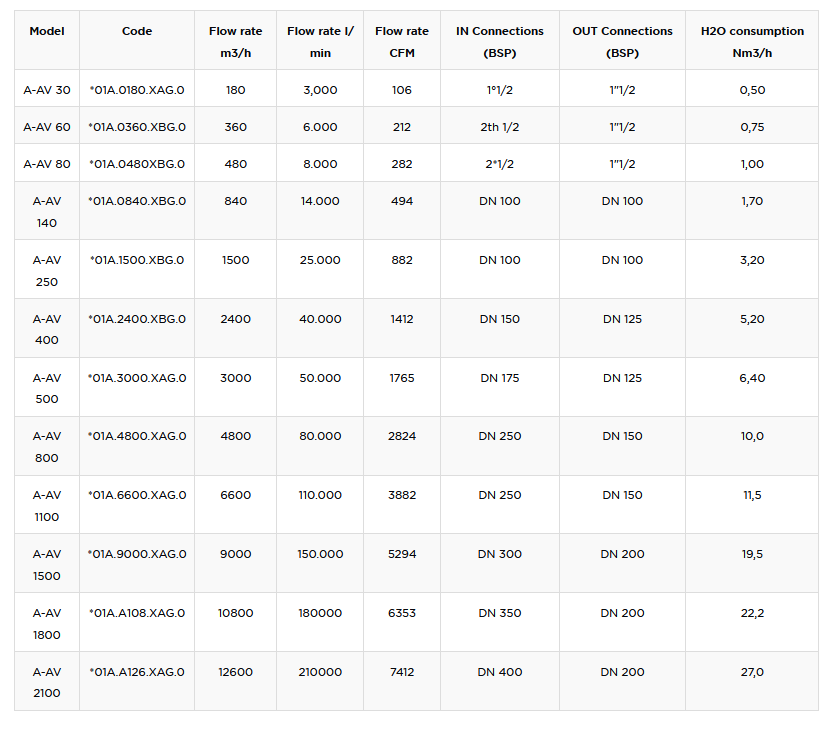

A/AV 30 - A/AV 2100
Air flow rate from 180 m³/h to 12600 m³/h
AVAILABLE OPTIONS:
- All models are available also without separator and with NPT
- or ANSI connections (depending on sizes).
Useful for the most diverse needs and applications, they also offer, upon request, the possibility of vertical assembling (AV series).
Extension of the working range - The maximum air inlet temperature has been increased to +200°C, for all models from A-AV140 to A-AV2100.
