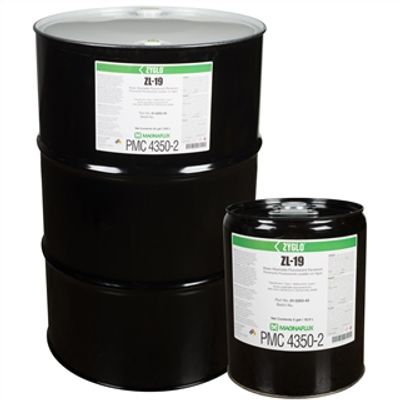

Magnaflux - Model ZL-19 WW -Water Washable Fluorescent Penetrant
FromMagnaflux
A water-removable Level 1 penetrant, ZL-19 WW is designed for use on rough or unmachined surfaces such as castings and forgings to find larger discontinuities in non-safety critical components. It is ideal for inspecting automotive and general industrial components such as engine cylinder blocks, power train components, rocker arms, pistons, steering knuckles, etc. ZL-19 WW washes off parts with ease, leaving less background for clearer indications – even on rough surfaces. The quick rinsing reduces water usage in the inspection process, and the rinse water is easily treatable for simpler disposal. This economical fluorescent penetrant helps users reduce their over-all cost per part by reducing penetrant loss through drag-out, speeding up the washing and inspection process, and cutting rinse water costs.
Most popular related searches
wash water
process wash water
water cost
process water
NDT test
NDT testing
non-destructive testing
water information
NDT product
parts washing
Ordering Information
20 litresF02001
205 litresF02002
Product Properties
NDT TypeFluorescent Penetrant Testing
Penetrant TypeType 1
Fluorescent Penetrant SensitivityLevel 1 - Low Sensitivity
Penetrant MethodsMethod A, Method C
Removal TypeWater Washable
Required EquipmentUV light source
Applications
Ideal Application: Castings, Engine cylinder blocks, Forgings, Pistons, Power train components, Rocker arms, Rough surface finish, Steering knuckles, Unmachined parts
Defect Examples: Cold shuts, Cracks, Delamination, Laps, Porosity, Seams
Compliance Title
Standards: AECL, ASME BPVC, ASTM E1417, ASTM E2297, Boeing BAC 5423 PSD 6-46 or 8-4, Boeing PS-21202, General Electric P50YP107
