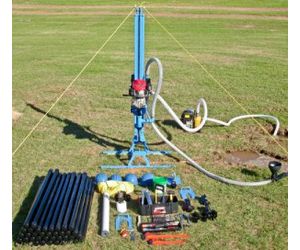

Lone Star - Model LS300H+ -Water Well Drill
The LS300H+ has the power to satisfy the most demanding drilling applications. The unit’s bypass flow control provides 5,000 pounds of powerful pushing force when anchored, ensuring the drill reaches its desired depth every time. Optional tricone roller bits and drill collars adapt the drill to a variety of conditions, helping it push through rock formations. The water well drill’s heavy-duty frame and reinforced base provide added durability. Additionally, the drill’s high-capacity load-bearing swivel offers extended seal life, virtually eliminating costly downtime.
Most popular related searches
water well drill
water drilling
well drilling
water well
well water drilling
down the hole hammer
portable water well drill
portable water drilling
well water
mud pump
- Drilling Depth: 300 ft (91.4 m)
- Borehole Diameter: 6 in (15 cm)
- Pull/Push-Back Force: 5,000 lbs/Up to 5,000 lbs (2,268 kg)
- Soil Types: Sand, clay and soft and hard rock formations
- Applications: Water well drilling
- Mud pump
- 3,000-psi hydraulic system
- Three 2-inch-diameter mud hoses (one 10-foot suction and two 12-foot discharge/bypass)
- 300 feet of 2-inch diameter M250 drill pipe with straight thread tool joints
- 4- and 6-inch step drag bits
- 6- and 7-inch reamers
- Toolbox and spare parts
- Anchor kit
- Down-the-hole hammer package
- Tricone roller bits and drill collars
- Wheel kit
- Diesel engines for hydraulic system and mud pump
- Drilling Depth: 300 ft (91.4 m)
- Borehole Diameter: 6 in (15 cm)
- Pull/Push-Back Force: Up to 5,000 lbs (2,268 kg)
- Mast Weight: 190 lbs (86.2 kg)
- Max Drilling Torque: 655 ft-lbs (888 N-m)
- Speed: 95 rpm at 10 gpm (37.9 L/m)
- Hydraulic Power Source: Honda 20 hp (14.9 kW)
- Hydraulic System: 10 gpm (37.8 L/m) at 3,000 psi
- Fuel Tank Capacity: 5 gal (18.9 L)
- Hydraulic Reservoir: 5 gal (18.9 L)
- Mud Pump: Honda 13 hp (9.7 kW)
- Max Head: 190 ft (58 m)
- Max Flow: 200 gpm (757 L/m)
- Discharge/Suction: 2 in (5.08 cm)
- Frame: Heavy-duty welded steel
- Transportation: Packs into two separate crates
