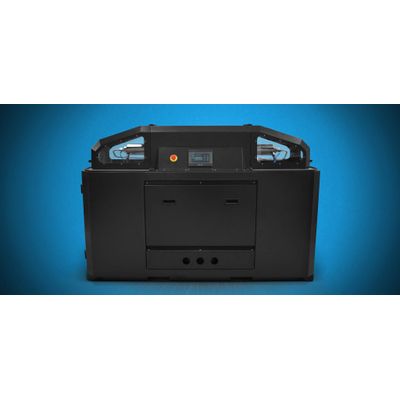

Model Quantum Nxt™ 87.000 Psi -Waterjet Pumps

SHARE

Waterjet cutting has proven to be a reliable technology and still offers enormous potential for innovation today. The development of 87,000k PSI (6,000 bar) pumps presents a milestone. The QUANTUM NXT™ 6000 bar pump series sets new standards in performance, reliability and energy efficiency never before achieved on the market. Extreme pressure: 87.000 PSI working pressure ensures fast and precise cuts. Highest efficiency: Up to 60% more efficient than hydraulic 87.000 PSI intensifiers. Fast maintenance: Simple service without special tools saves time and money. Extremely quiet: Bis zu 600% leiser im Vergleich mit hydraulischen 6.000 bar Intensifiern.

Most popular related searches
water jetting pump
high-pressure pump
water jetting
precision ball
hydraulic cylinder
pump technology
jet pump
linear actuators
linear actuator
water jetting system

The Qauntum NXT™ is the first ultra high pressure pump on the market to use the proven high efficiency "direct servo" technology. The linear servo actuator replaces the inefficient hydraulic system traditionally used. The revolutionary technology makes it possible to achieve 87.000 PSI (6,000 bar) working pressure at up to 9 l/min in a highly efficient manner, while saving up to 60% of energy compared to conventional systems. With these features, the Quantum NXT™ series sets new standards for ultra-high pressure pumps on the market.

The Quantum NXT™ waterjet pump is a revolutionary concept in waterjet cutting. It contains a servo motor that directly surrounds a heavy duty precision ball screw. The ball screw directly houses the ceramic pistons that reciprocate to create the pumping action, much like a hydraulic cylinder in a conventional waterjet pump.

The stepless control of the servo motor and the precision of the ball screw allow extremely precise control over the output pressure and volume of water displaced, as well as eliminating deadhead pressure spikes. This stepless control gives the operator the ability to select virtually any pressure and flow rate from zero to full capacity.
Highest efficiency
Up to 60% more efficient than conventional hydraulic compressors.
Extremely quiet
Up to 600% quieter compared to hydraulic compressors.
Low cost
Up to 300% increase in life of high pressure components, due to superior pressure control.

Water jet pumps generate extreme pressures to cut any material, but this pressure should only cut the material and not endanger or destroy any components.

Predictive maintenance

The combination of information from the diagnostic sensors and the information from the servo control technology makes it possible to carry out preventive maintenance in a targeted manner and protects you from expensive damage or production downtimes.

Ready for Industry 4.0

Industry 4.0 is no longer a dream of the future, the Quantum NXT™ can collect important data for you and can enable real-time remote diagnostics through optional networking.
