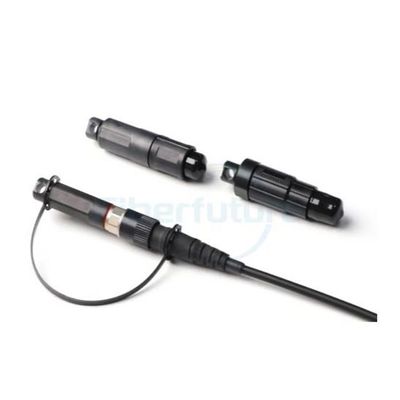

Fiberfuture - Model RoHS - STW (SC/APC) -Waterproof Connectors
FIBERFUTURE STW Cable Assemblies offer a cost-effective way to deploy fiber optics faster than traditional methods. They feature a simple, one-step connection system with a push-pull and nut-style latch, providing quick installation and compatibility with Optitap and Mini (SC/APC) adapters. Suitable for armored or non-armored cables
Most popular related searches
- Remote Radio Units (RRU/RRH)
- FTTA
- FTTH equipment
- Other outdoor systems
- Item: Parameter
- Insertion Loss: ≤0.3 dB
- Return Loss: Min. 60 dB
- Repeatability: ≤0.2 dB
- Interchangeability: ≤0.2 dB
- Durability: 1000 Cycles
- Operating Temperature: -40 °C ~ +85 °C
- Storage Temperature: -40 °C ~ +85 °C
- Installation Temperature: -40 °C ~ +85 °C
- Waterproofing Grade: IP68 (1M, 1 hour)
- Cable Diameter Range: ∅2.0mm - ∅5.0mm; 2x3mm Butterfly; 2x5mm Butterfly; 4x7mm Flat
- Housing Material: PC
- Boot Material: TPV
