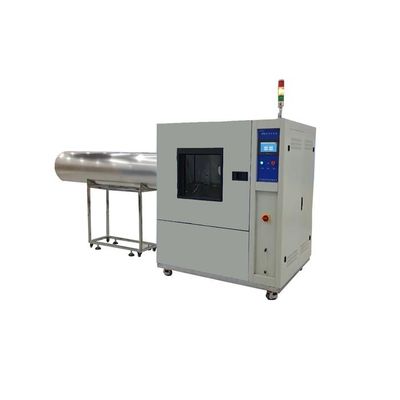

Enviclone - Model IPX1 thru IPX6 -Waterproof Test Chamber
IPX1 IPX6 Waterproof Chamber simulates the conditions of water dripping, water spray and water splashing, used to perform IPX protection type tests to evaluate the protection level of enclosures of electrical appliances and electronic equipment, lithium-ion batteries and other industries. It is compliant with international test standards IEC 60529, ISO 20653, DIN 40050-9 and DIN EN 60529, etc. The interior test space can be customized as per specific test requirement by enviClone technology.
Most popular related searches
test chamber
chamber test
water purifying device
waterproofing
water testing
water purifier
water recycling
water saving
water purification
water cost

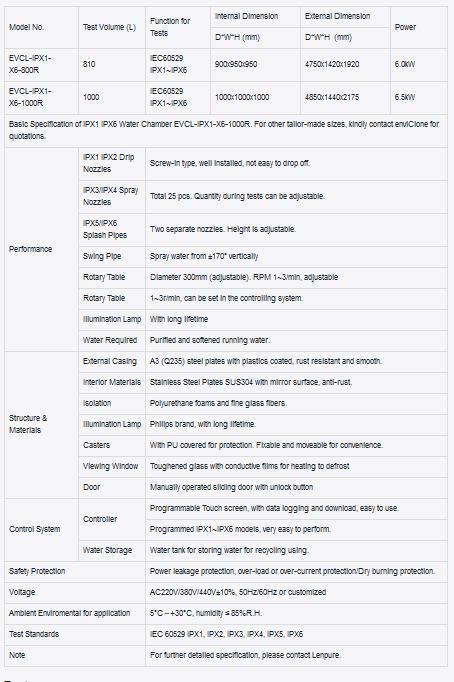

IPX1 thru IPX6 Water Test Chamber is one testing chamber which integrates IPX1, IPX2, IPX3, IPX4, IPX5 and IPX6 level testing functions on one chamber.
- With Drying System
- With Water Purifier Device
- IPX1 IPX2 Drip Nozzle needles are screw-in type, tightly installed.
- Touch screen controller Weinview, with models of IPX1 to IPX6, easy to operate.
- Data logging and download available, cellphone can remotely connect it.
- Fixable and movable casters with great convenience.
- Multiple protections on phase sequence, power leakage, etc.
- Easier accessible maintenance.
- Water recycling design to save water and test cost.
IP code waterproof tests generally should comply with such following international test standards:
- ISO 20653, IPX1K to IPX6K, IPX9K
- DIN EN 60529, IPX1 to IPX6, IPX9
- SAE J 575
- JIS D 0203
- MIL STD 810
- IEC 60529, EN 60068-2-18: IPX1 – IPX6
- IEC 60598-1
