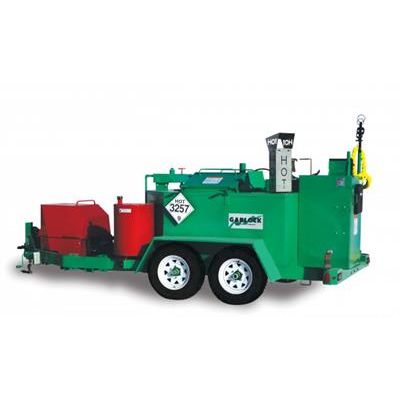

Garlock - Model 230 GSX -Waterproofing Spray Applicator
Plaza Decks, Rooftops, Transportation/Tunneling, Foundation Walls, Green Roofs/gardens, Leak Repair. Save time material and labor costs and complete projects up to 4 times faster versus other methods using the Garlock Spray-Applied waterproofing system.
Low Temperature Application:
Work more safely by spraying material at temperatures below 260 degrees or less which is classified as Cold-applied in most regions. Eliminates compliance with regulations normally associated with Hot-Applied membranes.
Productivity:
Spray longer without stopping to add product with 230 gallon capacity GSX spray applicator.
Rugged Design:
Experience long term performance, lower cost of ownership and operation with the GSX heavy duty design and construction, engineered for the rugged job ahead.
Diesel Heat and Digital Control:
For maximum safety and fuel efficiency, all GSX applicators utilize a fully enclosed chamber diesel heat system. The unique Double boiler design is oil jacketed for indirect heating. Keep product at the precise temperature for application with the on-board digital system with automatic control of application and melter temperatures.
High-Performance Mixing:
Eliminate temperature stratification with the specially designed Auger/Agitator. Unobstructed Internal Machine Recirculation ensures unsurpassed heat up and recovery times. Reduce downtime with the heavy-duty pumping system.
- Material Capacity: 230 Gallons
- Heating Method: diesel Indirect heat Oil jacket design
- Fuel Capacity: 33 gallons
- Dimensions: (L x W x H): 165" x 87" x 90"
- Shipping weight: 4,540 lbs
