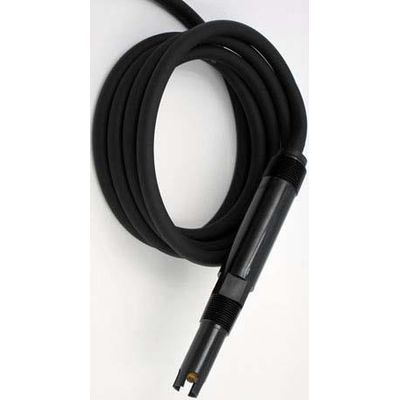

ASTI - Model IT Series -Waterproofing Style Submersible Sensor

SHARE

Suitable For Most Applications and the Most Cost Effective Waterproofing Option. Complete cable isolation with vinyl or norprene tubing & no metal parts whatsoever.

Most popular related searches
pH/ORP sensor
ion-selective
ORP sensor
waterproofing
pH sensor
dissolved oxygen sensor
chlorine dioxide
oxygen sensor
chlorination
fluoride sensor
  • 3/4" MNPT Rear Threaded Immersion Sensors
    • 6X11, 6X13, 6X12, 6X53, 6X54, 6X32 & 6X42 Series pH/ORP Sensors
  • 3/4" MNPT Rear Threaded Sanitary/HOT-TAP Sensors
    • 5X31, 5X41 & 5X51 pH/ORP Series Sensors
    • 5XX0 Ion Selective (ISE) Series Sensors
    • AST-DO-UNIVERSAL Dissolved Oxygen (DO) Series Sensors in the universal and sanitary/HOT-TAP configurations
  • 1" MNPT Rear Threaded Immersion Sensors
    • 6X52, 6X51, 6X31 & 6X41 Series pH/ORP Sensors
    • 6XX0 Series Ion Selective (ISE) Series Sensors
  • 1" MNPT Read Threaded Twist Lock Sensors with protective tines (guard) option added
    • 8X52, 8X51, 8X31 & 8X41 Sensor pH/ORP Series
    • 8XX0 Series Ion Selective (ISE) Series Sensors
    • AST-DO-UNIVERSAL Dissolved Oxygen (DO) Series Sensors in the twist lock quick disconnect configuration
  • 1-1/4" MNPT Read Threaded Immersion Sensors
    • AB 6100 Fluoride Ion Selective Sensors Only
  • Complete isolation of back end threaded fitting from liquid process and good protection of cable from corrosion and chemical attack
  • Major Rear threading is identical to that specified on original sensor specifications prior to application of Waterproofing "IT" Option
  • Suitable For Applications and the Most Economical and Cost Effective of our Waterproofing Options
  • Recommended primarily for elongating sensor life where attack of liquid from back end causes death to sensor (typically by corrosion along cable) prior to chemical or physical attack through front of probe
  • For Applications Requiring Waterproofing Assemblies to be constructed of only CPVC (for strong oxidative or reducing solutions - i.e. chlorine, chlorine dioxide, strong hydrogen peroxide or ozone solutions... etc.); Change Waterproofing part description from Waterproofing "WPIT" to "WPITC" (as shown in photos to right)
