Watertronics - Model Watermax 9000 -Booster Pump

SHARE

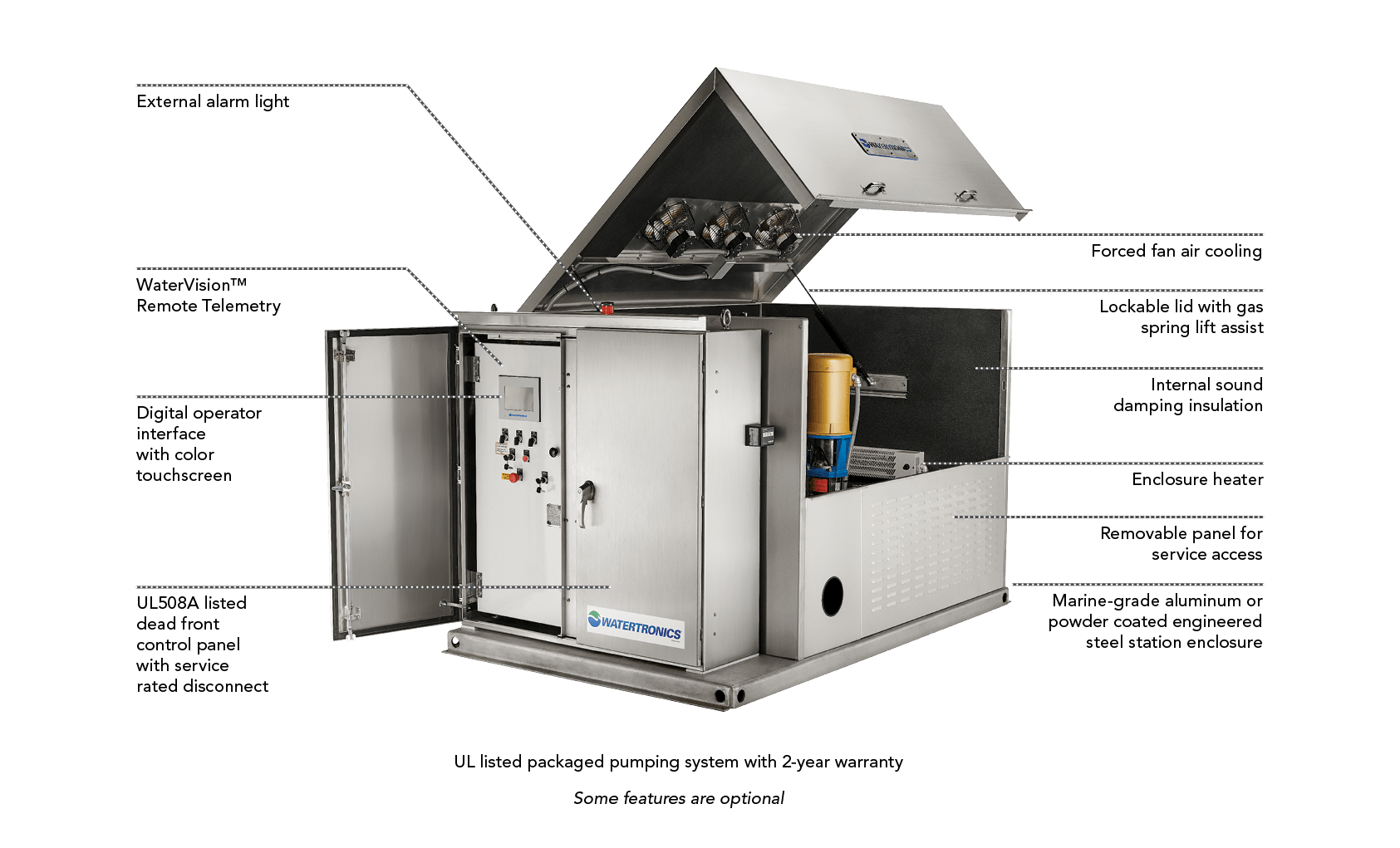

Ideally suited for large commercial turf and smaller golf course applications, WaterMax 9000 Pumping Systems provide all the technology and performance of a larger system in a compact, self-contained package.

Most popular related searches
silent check valve
electromagnetic flow meter
submersible turbine pump
pump system
pressure regulator
VFD pump
stainless steel enclosure
digital temperature controller
isolation valve
epoxy coating
  • Application: Booster, Suction Lift, Flooded Intake
  • Flow: Up to 1000 GPM
  • Pressure: Up to 140 PSI
  • Voltage: 240/1 Phase, 208/3 Phase, 240/3 Phase, 480/3 Phase
  • Advanced Watertronics PLC-based control software with color touchscreen
  • UL 508A listed dead front control panel with service rated disconnect
  • Horizontal premium efficient inverter duty rated motor
  • Alarms:
    • Low pressure shutdown
    • High pressure shutdown
    • VFD fault shutdown
    • High pump temperature shutdown
    • Motor overload shutdown
    • Phase loss (3 phase only)
  • Automatic reset and time stamping of all alarms
  • Starting Options:
    • Pressure drop
    • Flow based
    • 24 VAC remote start relay
  • Lightning surge protection
  • VFD pressure regulation with surge free station starting/stopping
  • Stainless steel pressure transducer
  • Flow sensor providing flowrate and totalized system flow
  • Durable cast iron pump featuring bronze impeller and mechanical seal
  • Silent check valve per pump
  • Individual pump and station discharge isolation valves
  • Full flow pump bypass piping included on booster and flooded suction models
  • Priming port and automatic priming assembly for suction lift models
  • Station inlet/discharge flanged terminations
  • Marine grade aluminum station enclosure with lockable lid, forced fan air cooling, and gas spring assisted lid lift
  • Stainless steel formed and welded base
  • Industrial grade polyurethane UV resistant coatings on all station piping
  • Epoxy coated steel enclosure and base available in green or sandstone
  • WaterVision remote monitoring – ethernet or cellular versions
  • Additional 24 volt controller start (up to 2 additional)
  • Floating HDPE intake suction line assembly with foot valve
  • Intake suction pipe with screen & vacuum pump assembly
  • Electromagnetic flow meter
  • Suction & discharge drop pipes with multiple connection options
  • Across the line (XL) by-pass contactor
  • Temperature controlled enclosure heater
  • Vandal resistant red alarm light
  • Internal sound dampening insulation
  • Back flow preventer
  • Programmable set-point lake level control
  • Electronic Butterfly Valve (EBV) back up pressure regulation in case of VFD failure
  • Submersible turbine pump(s)
  • VFD controlled jockey pump
  • In-line basket or wye strainer
  • Automatic self-cleaning discharge filtration

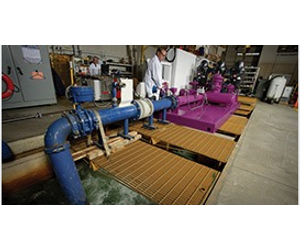

Dynamic Testing
Prior to delivery, eachstation is tested to site specific conditions for full dynamic flow, operation and 7-point vibration performance in our 88,000 gallon factory test pit.

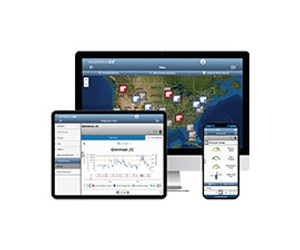

WaterVision 2.0 Remote Telemetry
Stay connected and in control. View, manage, diagnose and make adjustments remotely anytime.

VirtualVision™
Easy-to-use VirtualVision™operator interfacefeatures full colortouchscreen displayfor monitoring alarms,changing pumpsequencing, recording/resetting water usageand more.
