Radac - Model WaveGuide 5 Height & Tide -Wave Radar System

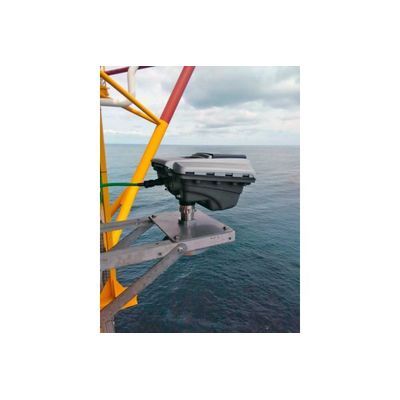

Mounted high above the water and without any moving parts there is no need for preventive maintenance or cleaning. (Re-) calibration is never required due to long term stable zero reference and constant sensitivity. The system is compact, robust and easy to install. It is equipped to measure wave heights and tides accurately, even in the most extreme conditions.
Dutch company
We are a Dutch company, based in Delft. Since 1996, we develop, manufacture and market the WaveGuide. We are proud that our professional systems are trusted across the industry.
Highly accurate wave radar
Our highly accurate wave radar has proven itself for over 20 years. This easy to use, reliable and robust sensor is particularly suited for the extreme conditions offshore.
- Highly accurate
- Maintenance free
- Plug and play
- Measuring at 10 Hz
- 0 – 60 m wave height
- Network connected
- Up to 10 years of internal data storage
- Improved heave compensation
- Increased accuracy at high pitching and rolling
- Heave
- Range: 2 – 75 m
- Accuracy: ± 3 mm
- Frequency: 10 Hz
- Water level
- Accuracy: ± 1 cm
- Interval: 1 min
- Wave height
- Range: 0 – 60 m
- Accuracy: ± 1 cm
- Interval: 1 min
- Wave period
- Range: 1 – 100 s
- Accuracy: ± 50 ms
- Interval: 1 min
Compact Version: Wg5-Ht-Cp
- Mechanical
- Dimensions: ø 265 x 245 mm
- Weight: 12.5 kg
- Material: Stainless steel, AISI 316L
- Electrical
- Power: 24 – 65 VDC, 65 – 240 Vac, 8 W
- Frequency: 10 GHz (X-band)
- Modulation: Triangular FMCW
- Communication
- Network: 1x Ethernet
- Data storage: SD 32 Gb
- Optional: External converter to RS232 or RS422 or RS485
Ex Version: Wg5-Ht-Ex
- Mechanical
- Dimensions: 217 x 319 x 379 mm
- Weight: 17.2 kg
- Material: Chromatized aluminum
- Electrical
- Power: 24 – 65 VDC, 65 – 240 Vac, 8 W
- Frequency: 10 GHz (X-band)
- Modulation: Triangular FMCW
- Communication
- Network: 1x Ethernet
- Data storage: SD 32 Gb
- Optional: External converter to RS232 or RS422 or RS485
